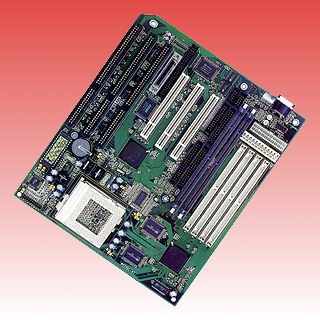

Pegasus III (P5TXSC-AT) - EFA .jpg)
CPU INTEL Pentium P54C, P54CS, P55C(MMX 166/200/233), Cyrix 6x86, Cyrix 6x86L, AMD 5k86(K5), K6(200,233), CPU Speed P54C : 100/120/133/150/166/200 MHz P55C/K6 : 166/200/233 MHz System Speed 60/66 MHz BIOS BIOS 128K BIOS; PnP Compliant (256K Upgradable) BIOS ROM Flash Memory CACHE Internal(L1) Write Back External(L2) Pipi-line Burst Write Back SRAM(256K/512K) 256K on board MEMORY DRAM Size From 4M up to 256M Bytes DRAM Module SIMM x 4 for 2 Banks of 72 pin(5V EDO/FP) DIMM x 2 of 168 pin for Sync. DRAM (3.3V Non-Buffer) or 3.3V EDO On Board I/O I/O Function Local Bus Enhanced Dual-Channel IDE Bus Master PCI IDE/Mode 4 Support Ultra DMA-33 Mode Support ECP/EPP Parallel Port 2 Serial Port IR Function (Optional) FDD Support GREEN SYSTEM SMM Control, Stop CPU Clock, ACPI VGA Control of DPMS SLOT Expansion Slot 16 Bit ISA x 3 + 32 Bit PCI x 3 (3 Master Support) PCI Bus Fully Synchronous 30/33 MHz PCI Bus Interface MEMORY DIMM x 2, SIMM x 4 Power Connector AT/ATX Power Connector Support Fully ATX Function Support USB Two USB Ports (Optional cable must be purchased) Mouse PS/2 Mouse Keyboard Keyboard CNN PS/2 Keyboard Others Main Chipset INTEL 430TX CHIPSET,MTXC(82439TX) x 1, PIIX4(82371AB) x 1 I/O Chipset Winbond W83977TF, PC97 Compliant, ACPI SCSI Chipset ATP 870IU Synchronous transfer rate up to 20MB/s for Ultra SCSI-3 Asynchronous transfer rate up to 7MB/s PCB Size 220mm x 260mm x 1.6mm, 4 layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EFA Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
