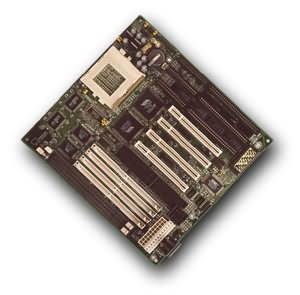

Viking II(P5VPX97-AT)- EFA .jpg)
Processor: ZIF Socket 7 for CPUs Intel® Pentium P54C and P55C up to 233MHz AMD K5/K6 75-300MHz, AMD K6-2 (up to 366MHz but not 350MHz) Cyrix 6x86/MX (up to PR266), Cyrix MII PR333 60 / 66 / 75MHz System Speeds Supported BIOS: 128K Award® PCI BIOS; PnP Compliant Flash Memory EPROM Year 2000 Compliant Cache Memory: On-board 512KB of Write Back Secondary Cache Pipe-line Burst Write Back SRAM(256K/512K) Memory: (2) 168-pin DIMM Sockets (3.3V Non- Buffer or 3.3V EDO Supported) Maximum 256MB RAM (4) SIMMs for 2 Banks of 72 Pin (5V EDO/FP) Data Path 64 Bit Wide On-Board EIDE: Local Bus Enhanced Dual-Channel IDE (2) Bus Master PCI IDE / Mode 4, Ultra DMA-33 Support. LBA Mode, Enhanced PIO Mode, 4HD Autodetect On-Board I/O: (2) Serial Ports (16550 UART) (2) USB Ports (Optional Cable Must Be Purchased) (2) PnP DMA Channel Steering VIA BIOS (1) Floppy port maximum transfer rate up to 1M-bit/sec (1) Parallel Port (STD/EPP/ECP) Green: System: SMM Control, ACPI VGA: Control of DPMS Expansion Slots: (4) 32-bit PCI Bus Master Slots (3) 16-Bit ISA slots (2) DIMM Memory (4) SIMM Memory Chipset: Main Chipset: VIA 580VPX/97 Chipset IO Chipset: SMC669 Options: (1) IrDA Compatible Infrared port (Optional) (2) USB Ports (Optional Cable Must Be Purchased) Power Connectors: AT/ATX Power Connector Support Dimensions: PCB Size 220mm x 230mm x 1.6mm, 4 layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EFA Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
