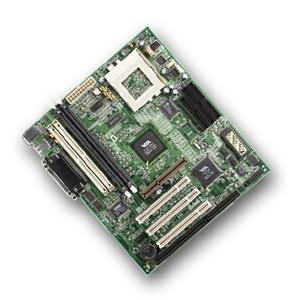

Viking m3 (P5MVP3-mATX)- EFA .jpg)
Processor: ZIF Socket 7 for CPUs Intel® Pentium P54C and P55C up to 233MHz AMD K5/K6 75-350Mhz, AMD K6-2 (up to 475Mhz) and AMD K6-3 (up to 450MHz) Cyrix 6x86/MX (up to PR266), Cyrix MII PR333 60 / 66 / 75 / 83 / 95 / 100MHz System Speeds Supported BIOS: 1MB Award® PCI BIOS; PnP Compliant Flash Memory EPROM Year 2000 Compliant Cache Memory: On-board 512KB of Write Back Secondary Cache Pipelined Burst SRAM Memory: (2) 168-pin DIMM Sockets (3.3V Non- Buffer or 3.3V EDO Supported) (2) SIMM for 1 Bank of 72 Pin (5V EDO / FP) Maximum 512MB RAM Data Path 64 Bit Wide On-Board EIDE: Local Bus Enhanced Dual-Channel IDE (2) Bus Master PCI IDE / Mode 4, Ultra DMA-33 Support. LBA Mode, Enhanced PIO Mode, 4HD Autodetect On-Board I/O: (2) Serial Ports (16550 UART) (2) USB Ports (2) PnP DMA Channel Steering VIA BIOS (1) Floppy port maximum transfer rate up to 1M-bit/sec (1) Parallel Port (STD/EPP/ECP) Green: System: SMM Control, ACPI VGA: Control of DPMS Expansion Slots: (1) AGP Slot (3) 32-bit PCI Bus Master Slots (1) 16-Bit ISA slots (2) DIMM Memory (2) SIMM Memory Chipset: VIA MVP3 Chipset SMC669 I/O chip Options: (1) IrDA Compatible Infrared port (Optional) LM75/W8378D I/O Chipset (Optional) Dimensions: PCB Size 244mm x 210mm x 1.6mm, 4 layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EFA Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
