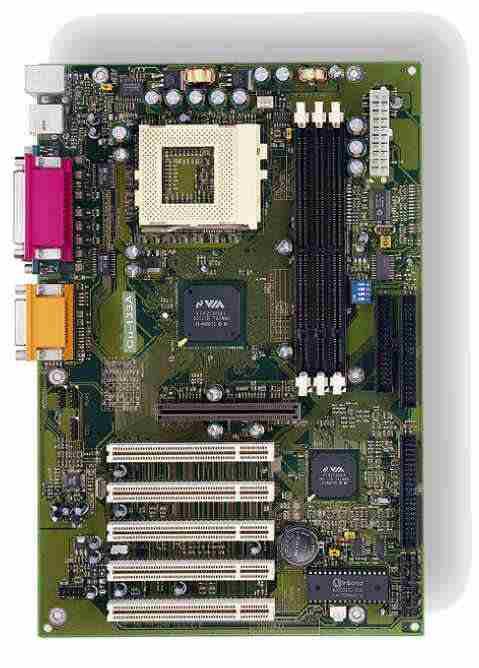

CU-133A EPOX
Supports Socket 370 Processors. Intel Celeron, Pentium III FC-PGA, VIA Cyrix III. VIA Apollo Pro 133A AGPset. I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard, 2 more can be added as option! Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 190mm. UltraDMA-66 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4 & UltraDMA-33. 66/100/133MHz Front Side Bus. 3x DIMM Slots for SDRAM. 768MB max. supported. View CMTL certified memory modules PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 5 (32-bit) PCI, 1 AGP slots. AGP supports 1x, 2x, and 4x modes. Onchip AC-97 Audio. Dual full duplex Direct Sounds channels. H/W SoundBlaster Pro DOS Legacy compatible. FM Synthesis for legacy compatibility. Supports game/MIDI port. Extended Functions for Greater Value! Supports exclusive USDM (Unified System Diagnostic Manager) under Win9x/NT4 and Hardware Monitoring Function by VT82C686A. Supports exclusive KBPO (KeyBoard Power On). Support CPU Clock Setting via Jumper Supports. Wake-On-LAN Function. Designed with VIA's Apollo Pro 133A chipset, the CU-133A is a high quality motherboard built by EPoX in the industry standard ATX format. In addition to the AGP interface for high performance graphics, this board offers five industry standard PCI, one 4x compatible AGP expansion buses as well as many other advanced system and BIOS features. For full feature system designs, the Apollo Pro 133A is paired with the VIA VT82C686A super south bridge. Highly advanced, the CU-133A combines integrated AC-97 audio support for SoundBlaster Pro and FM synthesis legacy audio, super I/O, and hardware monit oring capabilities. Two bus mastering ATA 33/66 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connection of remo te devices. Plus this mainboard is already equipped with the new Intel standardized Audio-Modem-Riser Slot (AMR) providing connectors for Audio and Modem at the system's I/O backplane. Quick View...Model Chipset CU-133A VIA Apollo Pro 133A EP-3VBA2 & EP-3VCA VIA Apollo Pro 133A EP-6VBA VIA Apollo Pro 133 EP-6VBA2 VIA Apollo Pro 133a CPU FC-PGA Pentium III Celeron Celeron Pentium II Pentium III Celeron Pentium II Pentium III Celeron Cache ISA/PCI 0/5 + 1 AGP 1/5 + 1 AGP + 1 AMR 1/5 + 1 AGP + 1 AMR 1/5 + 1 AGP + 1 AMR SIMM/DIMM 0/3 0/3 0/3 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
