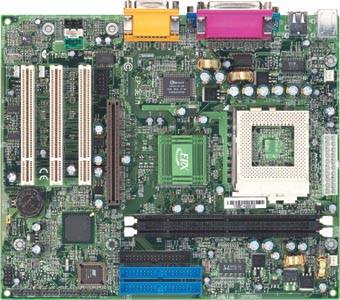

EP-3ETM EPOX
Supports Socket 370 Processors. Intel Celeron II FC-PGA, Pentium III FC-PGA/FC-PGA2. Intel 815E B-stepping AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard, 2 additional as option. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 205mm x 243mm. UltraDMA-100 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 2x DIMM Slots for SDRAM. 512MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 3 (32-bit) PCI, and 1 AGP. AGP supports 1x, 2x, and 4x mode. Onchip audio. Dual full-duplex Direct Sound channels H/W Sound Blaster Pro for DOS legacy compatibility FM synthesis for legacy compatibility Supports game and MIDI port Onchip AGP based video. Extended Functions for Greater Value! Supports exclusive USDM (Unified System Diagnostic Manager) and Hardware Monitoring Function by W83627HF-AW Supports STR (Suspend To RAM) Function Supports CPU clock (1MHz increment) setting via BIOS Supports 4MB AIMM module for Display Memory Expansion The EP-3ETM is a high quality motherboards built by EPoX in the industry standard Micro ATX format. It is based upon the Intel 815E B-stepping series chipset providing AC97 PCI based sound, and UltraDMA-100. In addition to the onboard sound these boards o ffers three industry standard PCI, and one 4x AGP slot bus as well as many other advanced system and BIOS features. Two bus mastering ATA 100 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connectio n of remote devices. Quick View... Model Chipset EP-3SPA3 Intel 815EP EP-3SPA Intel 815EP EP-3ETM Intel 815E B-stepping EP-3SPM Intel 815EP CPU Celeron 370 Pentium III FC-PGA Celeron 370 Pentium III FC-PGA Celeron II Pentium III FC-PGA, FC-PGA2 Celeron 370 Pentium III FC-PGA ISA/PCI 0/5 + 1 AGP + 1 CNR 0/6 + 1 AGP + 1 CNR 0/3 + 1 AGP 0/3 + 1 AGP + 1 CNR SIMM/DIMM 0/3 0/3 0/2 0/2 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, AC97. UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, AC97. UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, AC97. UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, AC97. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
