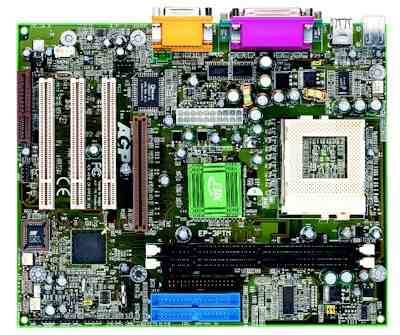

EP-3PTM EPOX
Supports Socket 370 Processors. Intel Celeron II FC-PGA, Pentium III FC-PGA/FC-PGA2. Intel 815EP B-stepping AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard, 2 additional as option. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard Micro ATX form factor. 245mm x 200mm. UltraDMA-100 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 2x DIMM Slots for SDRAM. 512MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 3 (32-bit) PCI, 1 AGP & 1 CNR. (CNR & PCI share slot) Onchip AC97 audio. Dual full-duplex Direct Sound channels H/W Sound Blaster Pro for DOS legacy compatibility FM synthesis for legacy compatibility Supports game and MIDI port Extended Functions for Greater Value! Supports Hardware Monitoring Function by W83627HF-AW Supports exclusive KBPO (Keyboard Power ON) Function Supports STR (Suspend To RAM) power saving Function Supports Wake-On-LAN Function The EP-3PTM is a high quality motherboards built by EPoX in the industry standard Micro ATX format. It is based upon the Intel 815EP B-stepping series chipset providing AC97 PCI based sound, and UltraDMA-100. In addition to the onboard sound these boards offers three industry standard PCI, one 4x AGP slot and one CNR expansion buses as well as many other advanced system and BIOS features. Two bus mastering ATA 100 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connectio n of remote devices. Plus this mainboard is already equipped with the new Intel standardized Communications-Network-Riser Slot (CNR) providing connectors for modem devices at the system's I/O backplane. The CNR slot allows the addition of multi-channel audio, V.90 analog modem, Home PNA, 10/100 LAN. Quick View... Model Chipset EP-3SPA3 Intel 815EP EP-3PTA Intel 815EP B-stepping EP-3PTM Intel 815EP B-stepping EP-3SPA Intel 815EP CPU Celeron 370 Pentium III FC-PGA Celeron II Pentium III FC-PGA, FC-PGA2 Celeron II Pentium III FC-PGA, FC-PGA2 Celeron 370 Pentium III FC-PGA ISA/PCI 0/5 + 1 AGP + 1 CNR 0/6 + 1 AGP + 1 CNR 0/3 + 1 AGP + 1 CNR 0/6 + 1 AGP + 1 CNR SIMM/DIMM 0/3 0/3 0/2 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, AC97. UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, AC97. UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, AC97. UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, AC97. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
