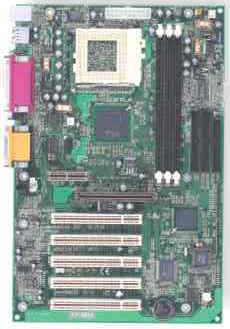

EP-3S1A EPOX
Supports Socket 370 Processors. Intel Pentium III FC-PGA, PPGA 370 Celeron. Intel 815 PCIset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard, 2 additional as option. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 200mm. UltraDMA-66 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 3x DIMM Slots for SDRAM. 512MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 5 (32-bit) PCI, 1 AGP/AIMM & 1 AMR. Onchip i752 AGP video & audio. Onboard AC97 2.1/2.0 Digital Audio. Dual full-duplex Direct Sound channels. Supports game or MIDI port. Extended Functions for Greater Value! PCI v2.2 compliant. Keyboard Power On (KBPO) - use keyboard to power on system. Supports Suspend to Ram (STR). Supports BIOS adjustable CPU Vcore/Vio and FSB. Supports exclusive USDM (Unified System Diagnostic Manager) under Win9x/NT4 - monitor in Windows system temperatures, voltages, etc. Hardware monitoring functions provided by Winbond W83627HF-AW. Wake On Lan (WOL) - use WOL compatible network card to power on system. Supports AIMM modules for Display Memory Expansion up to 4MB. The EP-3S1A is a high quality motherboards built by EPoX in the industry standard ATX format. It is based upon the Intel 815 series chipset providing high performance Intel i752 2D/3D graphics and AC97 PCI based sound. In addition to the onboard video and sound these boards offers five industry standard PCI and one AMR expansion buses as well as many other advanced system and BIOS features. Two bus mastering ATA 66 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connection of remote devices. Plus this mainboard is already equipped with the new Intel standardized Audio-Modem-Riser Slot (AMR) providing connectors for modem devices at the system's I/O backplane Quick View... Model Chipset EP-3WXA4 Intel 810 EP-3S1A Intel 815 EP-3WXM Intel 810 EP-3WXM4 Intel 810 CPU Celeron 370 Celeron 370 Pentium III FC-PGA Celeron 370 Celeron 370 Cache ISA/PCI 0/5 + 1 AMR 0/5 + 1 AGP + 1 AMR 0/3 + 1 AMR 0/3 + 1 AMR SIMM/DIMM 0/2 0/3 0/2 0/2 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX MicroATX MicroATX Others UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound, i752 video w/4MB display cache UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, i752 video, AC97. UltraDMA-33/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound, i752 video UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound, i752 video w/4MB display cache CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
