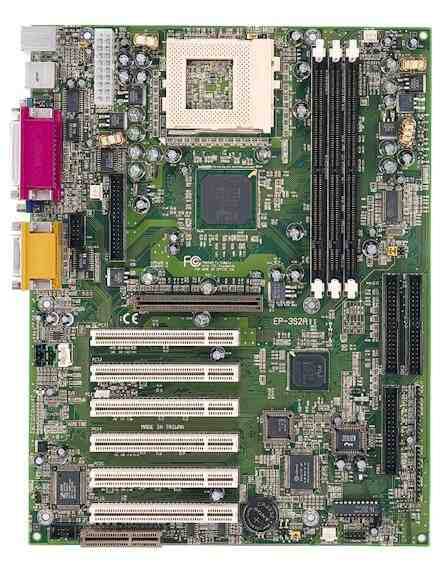

EP-3S2A EPOX
Supports Socket 370 Processors. Intel Pentium III FC-PGA, PPGA 370 Celeron. Intel 815E PCIset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard, 2 additional as option. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 235mm. UltraDMA-100 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 3x DIMM Slots for SDRAM. 512MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 6 (32-bit) PCI, 1 AGP & 1 CNR. Onchip i752 AGP video & audio. Onboard AC97 2.1/2.0 Digital Audio. Dual full-duplex Direct Sound channels. Supports game or MIDI port. Extended Functions for Greater Value! PCI v2.2 compliant. Keyboard Power On (KBPO) - use keyboard to power on system. Supports Suspend to Ram (STR). Supports BIOS adjustable CPU Vcore and FSB. Supports exclusive USDM (Unified System Diagnostic Manager) under Win9x/NT4 - monitor in Windows system temperatures, voltages, etc. Hardware monitoring functions provided by Winbond W83627HF-AW. Supports AIMM modules for Display Memory Expansion up to 4MB. Support FT1 connector for TV-out and LCD monitor Adapter (optional) The EP-3S2A is a high quality motherboards built by EPoX in the industry standard ATX format. It is based upon the Intel 815E series chipset providing high performance Intel i752 2D/3D graphics, AC97 PCI based sound, and UltraDMA-100. In addition to the o nboard video and sound these boards offers six industry standard PCI and one CNR expansion buses as well as many other advanced system and BIOS features. Two bus mastering ATA 100 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connectio n of remote devices. Plus this mainboard is already equipped with the new Intel standardized Communications-Network-Riser Slot (CNR) providing connectors for modem devices at the system's I/O backplane Quick View... Model Chipset EP-3S1A Intel 815 EP-3S2A Intel 815E EP-3WXM Intel 810 EP-3WXM4 Intel 810 CPU Celeron 370 Pentium III FC-PGA Celeron 370 Pentium III FC-PGA Celeron 370 Celeron 370 Cache ISA/PCI 0/5 + 1 AGP + 1 AMR 0/6 + 1 AGP + 1 CNR 0/3 + 1 AMR 0/3 + 1 AMR SIMM/DIMM 0/3 0/3 0/2 0/2 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX MicroATX MicroATX Others UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, i752 video, AC97. UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, i752 video, AC97. UltraDMA-33/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound, i752 video UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound, i752 video w/4MB display cache CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
