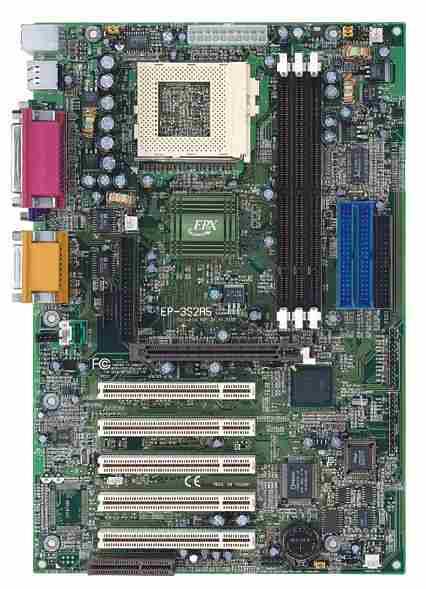

EP-3S2A5 EPOX
Supports Socket 370 Processors. Intel Pentium III FC-PGA, PPGA 370 Celeron. Intel 815E PCIset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard, 2 additional as option. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 235mm. UltraDMA-100 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 3x DIMM Slots for SDRAM. 512MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 5 (32-bit) PCI, 1 AGP & 1 CNR. Onchip i752 AGP video & audio. Onboard AC97 2.1/2.0 Digital Audio. Dual full-duplex Direct Sound channels. Supports game or MIDI port. Extended Functions for Greater Value! Supports exclusive USDM (Unified System Diagnostic Manager) under Win9x/NT4 and Hardware Monitoring Function by W83627HF-AW Supports exclusive KBPO(Keyboard Power ON)Function Supports STR(Suspend To RAM) power saving Function Supports CPU Vcore and Clock (1MHz increment) Settings Supports Wake-On-LAN Function Supports 4MB AIMM module for Display Memory Expansion Supports POSTMAN(Power On Self Test with Human voice alarm) Support FT1 connector for TV-out and LCD monitor Adapter (optional) The EP-3S2A5 is a high quality motherboards built by EPoX in the industry standard ATX format. It is based upon the Intel 815E series chipset providing high performance Intel i752 2D/3D graphics, AC97 PCI based sound, and UltraDMA-100. In addition to the onboard video and sound these boards offers five industry standard PCI and one CNR expansion buses as well as many other advanced system and BIOS features. Two bus mastering ATA 100 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connectio n of remote devices. Plus this mainboard is already equipped with the new Intel standardized Communications-Network-Riser Slot (CNR) providing connectors for modem devices at the system's I/O backplane Quick View... Model Chipset EP-3S1A Intel 815 EP-3S2A Intel 815E EP-3S2A5 Intel 815E EP-3WXM Intel 810 CPU Celeron 370 Pentium III FC-PGA Celeron 370 Pentium III FC-PGA Celeron 370 Pentium III FC-PGA Celeron 370 Cache ISA/PCI 0/5 + 1 AGP + 1 AMR 0/6 + 1 AGP + 1 CNR 0/5 + 1 AGP + 1 CNR 0/3 + 1 AMR SIMM/DIMM 0/3 0/3 0/3 0/2 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX MicroATX Others UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, i752 video, AC97. UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, i752 video, AC97. UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, i752 video, AC97. UltraDMA-33/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound, i752 video CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
