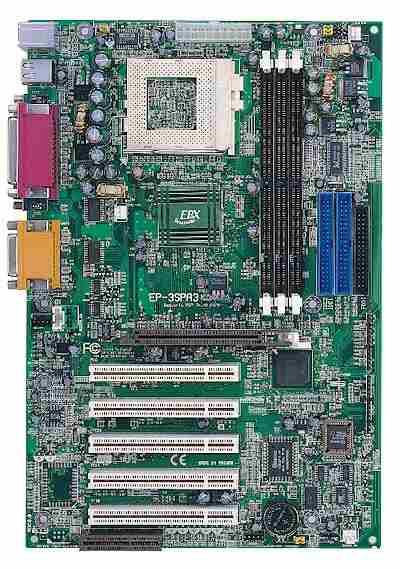

EP-3SPA3 EPOX
Supports Socket 370 Processors. Intel Pentium III FC-PGA, PPGA 370 Celeron. Intel 815EP AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard, 2 additional as option. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 205mm. UltraDMA-100 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 3x DIMM Slots for SDRAM. 512MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 5 (32-bit) PCI, 1 AGP & 1 CNR. Onchip audio. Dual full-duplex Direct Sound channels H/W Sound Blaster Pro for DOS legacy compatibility FM synthesis for legacy compatibility Supports game and MIDI port Extended Functions for Greater Value! PCI rev2.2 Compliant Supports exclusive USDM (Unified System Diagnostic Manager) under Win9x/NT4 and Hardware Monitoring Function by W83627HF-AW Supports exclusive KBPO(Keyboard Power ON)Function Supports STR(Suspend To RAM) power saving Function Supports CPU Vcore & VIO settings via BIOS Supports CPU Clock (1MHz increment) and Multiplier Settings via BIOS Supports AGP power(voltage) setting via BIOS Supports Wake-On-LAN Function Supports POSTMAN(Power On Self Test with Human voice alarm) The EP-3SPA3 is a high quality motherboards built by EPoX in the industry standard ATX format. It is based upon the Intel 815EP series chipset providing AC97 PCI based sound, and UltraDMA-100. In addition to the onboard sound these boards offers five indu stry standard PCI, one 4x AGP slot and one CNR expansion buses as well as many other advanced system and BIOS features. Two bus mastering ATA 100 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connectio n of remote devices. Plus this mainboard is already equipped with the new Intel standardized Communications-Network-Riser Slot (CNR) providing connectors for modem devices at the system's I/O backplane. The CNR slot allows the addition of multi-channel audio, V.90 analog modem, Home PNA, 10/100 LAN. Quick View... Model Chipset EP-3S2A Intel 815E EP-3S2A5 Intel 815E EP-3SPA3 Intel 815EP EP-3WXM Intel 810 CPU Celeron 370 Pentium III FC-PGA Celeron 370 Pentium III FC-PGA Celeron 370 Pentium III FC-PGA Celeron 370 Cache ISA/PCI 0/6 + 1 AGP + 1 CNR 0/5 + 1 AGP + 1 CNR 0/5 + 1 AGP + 1 CNR 0/3 + 1 AMR SIMM/DIMM 0/3 0/3 0/3 0/2 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX MicroATX Others UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, i752 video, AC97. UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, i752 video, AC97. UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, AC97. UltraDMA-33/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound, i752 video CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
