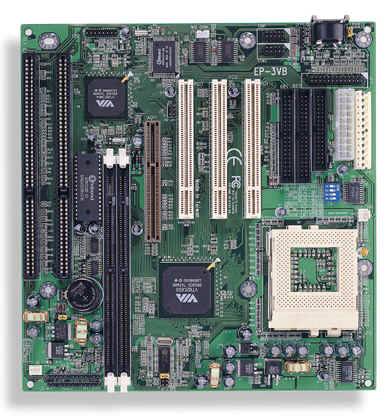

EP-3VB EPOX
Supports Socket 370 Processors. Intel Celeron, Pentium III FC-PGA VIA Apollo Pro+ AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 can be added as option. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard AT form factor. 220mm x 240mm. UltraDMA-33 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 66/100MHz Front Side Bus. 2x DIMM Slots for SDRAM. 256MB max. supported. PS/2 connectors. 1 PS/2 mouse. 3 (32-bit) PCI, 2 ISA, & 1 AGP slots. AGP supports 1x and 2x modes. Extended Functions for Greater Value! Easy DIP switch to configure CPU. Supports AT or ATX power supply. Wake On Lan (WOL) - use WOL compatible network card to power on system. (Requires ATX power.) Designed with VIA's Apollo Pro Plus chipset, the EP-3VB is a high quality motherboard built by EPoX in the industry standard AT format. In addition to the AGP interface for high performance graphics, this board offers four industry standard PCI and two IS A expansion buses as well as many other advanced system and BIOS features. Two bus mastering ATA 33/66 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connect ion of remote devices. Quick View...Model Chipset EP-BX3 Intel 82440BX EP-6VBE VIA Apollo Pro+ EP-6VB VIA Apollo Pro+ EP-3VB VIA Apollo Pro+ CPU Pentium II Pentium III Celeron Pentium II Pentium III Celeron Pentium II Pentium III Celeron Celeron Cache ISA/PCI 2/5 + 1 AGP 2/4 + 1 AGP 2/4 + 1 AGP 2/3 + 1 AGP SIMM/DIMM 0/3 0/2 0/2 0/2 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX AT AT AT Others UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports WOL UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports WOL UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports WOL CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
