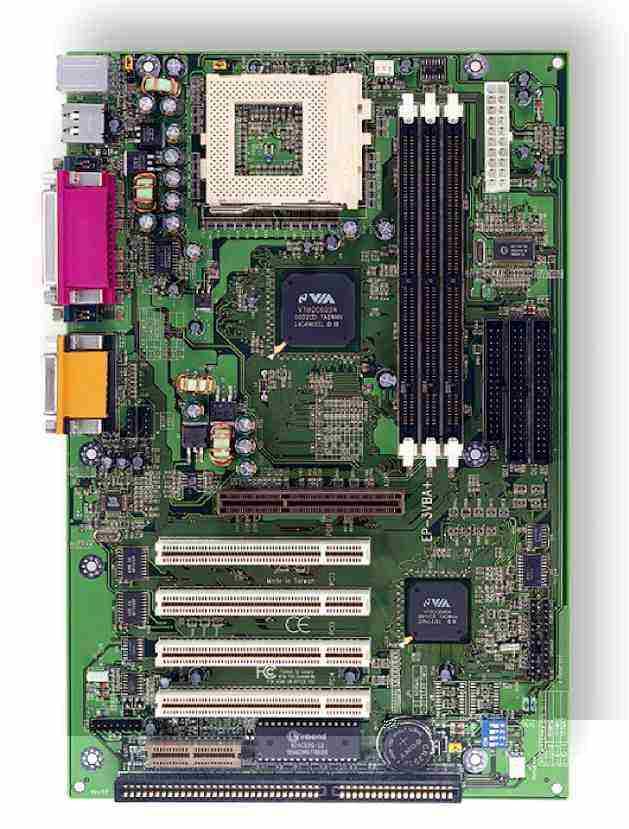

EP-3VBA EPOX
Supports Socket 370 Processors. Intel PPGA 370 Celeron. VIA Apollo Pro133 AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard, 2 more can be added as option! Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 190mm. UltraDMA-66 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4 & UltraDMA-33. 66/100MHz Front Side Bus. 3x DIMM Slots for SDRAM. 384MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 4 (32-bit) PCI, 1 ISA, 1 AGP & 1 AMR slots. AGP supports 1x and 2x modes. Onchip AC-97 Audio. Dual full duplex Direct Sounds channels. H/W SoundBlaster Pro DOS Legacy compatible. FM Synthesis for legacy compatibility. Supports game/MIDI port. Manual available for download! 850KB. Extended Functions for Greater Value! Keyboard Power On (KBPO) - use keyboard to power on system. Easy Setting Single Jumper (ESSJ) - single jumper F.S.B. selection. Easy DIP switch to select CPU multiplier. Wake On Lan (WOL) - use WOL compatible network card to power on system. Supports exclusive USDM (Unified System Diagnostic Manager) under Win9x/NT4 - monitor in Windows system temperatures, voltages, etc. Hardware monitoring functions provided by VIA VT82C686A chipset. Hardware sleep/resume. Designed with VIA's Apollo Pro133 chipset, the EP-3VBA is a high quality motherboard built by EPoX in the industry standard ATX format. In addition to the AGP interface for high performance graphics, this board offers four industry standard PCI and one IS A expansion buses as well as many other advanced system and BIOS features. For full feature system designs, the Apollo Pro Plus is paired with the VIA VT82C686 super south bridge. Highly advanced, the EP-3VBA combines integrated AC-97 audio support for SoundBlaster Pro and FM synthesis legacy audio, super I/O, and hardware monito ring capabilities. Two bus mastering ATA 33/66 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connect ion of remote devices. Plus this mainboard is already equipped with the new Intel standardized Audio-Modem-Riser Slot (AMR) providing connectors for Audio and Modem at the system's I/O backplane. Quick View...Model Chipset EP-ZX370A Intel 82440ZX EP-ZX370Y Intel 82440ZX EP-V370A VIA Apollo Pro EP-3VBA VIA Apollo Pro+ CPU Celeron 370 Celeron 370 Celeron 370 Celeron 370 Cache ISA/PCI 3/4 + 1 AGP 1/3 + 1 AGP 2/4 + 1 AGP 1/4 + 1 AGP + 1 AMR SIMM/DIMM 0/2 0/2 0/3 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX MicroATX ATX ATX Others UltraDMA-33/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, SBLINK UltraDMA-33/ACPI** 2S/1P/USB, IDE/FDD ports, KBPO, USDM, WOL, Yamaha Sound UltraDMA-33/ACPI** 2S/1P/USB, IDE/FDD ports, KBPO, USDM, WOL, SBLINK UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
