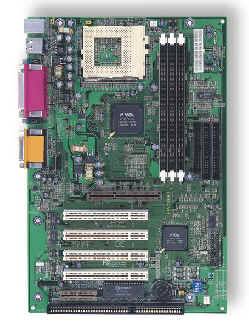

EP-3VBA3 EPOX
Supports Socket 370 Processors. Intel Celeron, Intel Pentium III FC-PGA, VIA Cyrix III. VIA Apollo Pro 133 AGPset. I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP, SPP), 2 Serial ports. USB. 2 supported onboard, 2 more can be added as option! Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP drive support! Standard ATX form factor. 305mm x 190mm. UltraDMA-66 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4 & UltraDMA-33. 66/100/133MHz Front Side Bus. 3x DIMM Slots for SDRAM. 768MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 4 (32-bit) PCI, 1 AGP, 1 ISA & 1 AMR slots. AGP supports 1x, and 2x modes. Onchip AC-97 Audio. Dual full duplex Direct Sounds channels. H/W SoundBlaster Pro DOS Legacy compatible. FM Synthesis for legacy compatibility. Supports game/MIDI port. Extended Functions for Greater Value! Supports exclusive USDM (Unified System Diagnostic Manager) under Win9x/NT4 - monitor in Windows system temperatures, voltages, etc. Hardware monitoring functions provided by VIA VT82C686A chipset. Keyboard Power On (KBPO) - use keyboard to power on system. Wake On Lan (WOL) - use WOL compatible network card to power on system. Hardware sleep/resume. Designed with VIA's Apollo Pro 133 chipset, the EP-3BVA3 is a high quality motherboard built by EPoX in the industry standard ATX format. In addition to the AGP interface for high performance graphics, this board offers one ISA, four industry standard PCI and one 2x compatible AGP expansion buses as well as many other advanced system and BIOS features. For full feature system designs, the Apollo Pro 133A is paired with the VIA VT82C686A super south bridge. Highly advanced, the EP-3VBA3 combines integrated AC-97 audio support for SoundBlaster Pro and FM synthesis legacy audio, super I/O, and hardware moni toring capabilities. Two bus mastering ATA 33/66 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connection of remo te devices. Plus this mainboard is already equipped with the new Intel standardized Audio-Modem-Riser Slot (AMR) providing connectors for Audio and Modem at the system's I/O backplane. Note: EP-3VBA3 and the EP-693A are the same product. Quick View...Model Chipset EP-3VBA VIA Apollo Pro 133 EP-3VBA2 & EP-3VCA VIA Apollo Pro 133A EP-3VBA3 VIA Apollo Pro 133 EP-6VBA2 VIA Apollo Pro 133A CPU Celeron Celeron Pentium III FC-PGA Celeron PGA VIA Cyrix III Pentium II Pentium III Celeron Cache ISA/PCI 1/5 + 1 AGP + 1 AMR 1/5 + 1 AGP + 1 AMR 1/4 + 1 AGP + 1 AMR 1/5 + 1 AGP + 1 AMR SIMM/DIMM 0/3 0/3 0/3 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 2X mode UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
