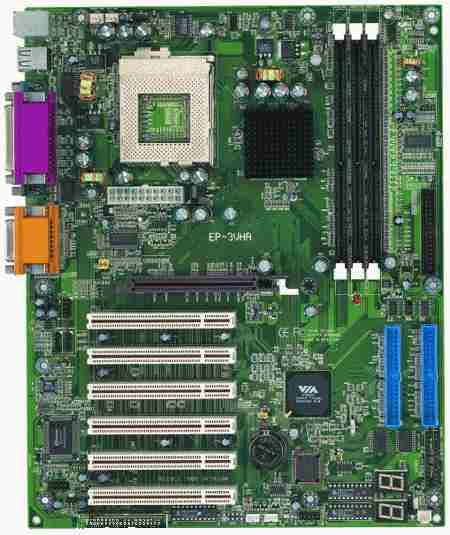

EP-3VHA EPOX
Supports Socket 370 Processors. Intel Celeron, Pentium III FC-PGA VIA Apollo Pro266 AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 4 supported onboard, 2 more can be added as option! Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 245mm. UltraDMA-100 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4 & UltraDMA-33/66. 66/100/133MHz Front Side Bus. 3x DIMM Slots for DDR DIMM PC266. 1.5GB max. supported. View CMTL certified memory modules PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 6 (32-bit) PCI, 1 AGP. AGP supports 1x, 2x, and 4x modes. Onchip AC-97 Audio. Dual full duplex Direct Sounds channels. H/W SoundBlaster Pro DOS Legacy compatible. FM Synthesis for legacy compatibility. Supports game/MIDI port. Extended Functions for Greater Value! Supports Hardware Monitoring Function by VT8233 Supports exclusive KBPO (KeyBoard Power On) Supports CPU Vcore/VIO(2.5V at 0.05V increment) setting via BIOS Supports CPU Clock settings via BIOS Supports STR(Suspend To RAM) power saving Function Supports Wake-On-LAN Function P80P Debug(POST) Card onboard design with LED display Fast Ethernet(10/100) & HSP Modem Controllers (for use with LMR slot). Designed with VIA's Apollo Pro266 chipset, the EP-3VHA is a high quality motherboard built by EPoX in the industry standard ATX format. In addition to the AGP interface for high performance graphics, this board offers six industry standard PCI, and 1 AGP 4x slot bus as well as many other advanced system and BIOS features. For full feature system designs, the Apollo Pro266 supports the new memory standard DDR. Highly advanced, the EP-3VHA combines integrated AC-97 audio support for SoundBlaster Pro and FM synthesis legacy audio, super I/O, and hardware monitoring capabilitie s. Two bus mastering ATA 33/66/100 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the con nection of remote devices. Quick View...Model Chipset EP-V370A VIA Apollo Pro EP-3VBA VIA Apollo Pro+ EP-3VBM VIA Apollo Pro+ EP-3VHA VIA Apollo Pro266 CPU Celeron 370 Celeron 370 Celeron 370 Pentium III FC-PGA Celeron 370 Cache ISA/PCI 2/4 + 1 AGP 1/4 + 1 AGP + 1 AMR 1/2 + 1 AGP + 1 AMR 0/6 + 1 AGP SIMM/DIMM 0/3 0/3 0/2 0/3 (DDR only) BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others UltraDMA-33/ACPI** 2S/1P/USB, IDE/FDD ports, KBPO, USDM, WOL, SBLINK UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound UltraDMA-66/100/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
