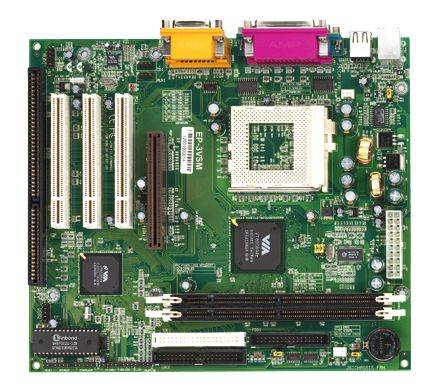

EP-3VSM EPOX
Supports Socket 370 Processors. Intel Celeron II FC-PGA, Pentium III FC-PGA/FC-PGA2. VIA Apollo Pro 133T AGPset. I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard, 2 more can be added as option! Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard Micro ATX form factor. 245mm x 215mm. UltraDMA-66 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4 & UltraDMA-33. 66/100/133MHz Front Side Bus. 2x DIMM Slots for SDRAM. 1GB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 3 (32-bit) PCI, 1 ISA (shared with PCI) & 1 AGP slots. AGP supports 1x, 2x, and 4x modes. Onchip AC-97 Audio. Dual full duplex Direct Sounds channels. H/W SoundBlaster Pro DOS Legacy compatible. FM Synthesis for legacy compatibility. Supports game/MIDI port. Extended Functions for Greater Value! Supports exclusive USDM (Unified System Diagnostic Manager) and Hardware Monitoring function by VT82C686B Supports exclusive KBPO (KeyBoard Power On) Supports Wake-On-LAN function Designed with VIA's Apollo Pro 133T chipset, the EP-3VSM is a high quality motherboard built by EPoX in the industry micro standard ATX format. In addition to the AGP interface for high performance graphics, this board offers three industry standard PCI, 1 ISA and one 4x compatible AGP expansion buses as well as many other advanced system and BIOS features. For full feature system designs, the Apollo Pro 133T is paired with the VIA VT82C686B super south bridge. Highly advanced, the EP-3VSM combines integrated AC-97 audio support for SoundBlaster Pro and FM synthesis legacy audio, super I/O, and hardware monit oring capabilities. Two bus mastering ATA 33/66 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connection of remo te devices. Quick View...Model Chipset EP-3VBA2 & EP-3VCA VIA Apollo Pro 133A EP-3VSA VIA Apollo Pro 133T EP-3VSM VIA Apollo Pro 133T EP-6VBA2 VIA Apollo Pro 133a CPU Celeron Celeron II Pentium III FC-PGA, FC-PGA2 Celeron II Pentium III FC-PGA, FC-PGA2 Pentium II Pentium III Celeron ISA/PCI 1/5 + 1 AGP + 1 AMR 0/5 + 1 AGP 1/3 + 1 AGP 1/5 + 1 AGP + 1 AMR SIMM/DIMM 0/3 0/3 0/2 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX Micro ATX ATX Others UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode UltraDMA-100/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode UltraDMA-100/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
