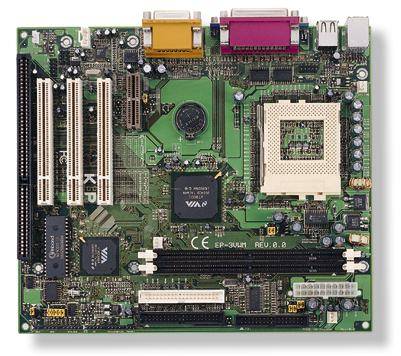

EP-3VWM EPOX
Supports Socket 370 Processors. Intel Celeron, Intel Pentium III FC-PGA, VIA Cyrix III. Click here for recommended CPU list (PDF format). VIA Promedia 8601 AGPset. I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP, SPP), 2 Serial ports. USB. 2 supported onboard, 2 more can be added as option! Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP drive support! Standard Micro ATX form factor. 245mm x 210mm. UltraDMA-66 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4 & UltraDMA-33. 66/100MHz Front Side Bus. 2x DIMM Slots for SDRAM. 512MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 3 (32-bit) PCI, 1 ISA & 1 AMR slot. Built-in AGP video with Trident Blade 3D core. Onchip AC-97 Audio. Dual full duplex Direct Sounds channels. H/W SoundBlaster Pro DOS Legacy compatible. FM Synthesis for legacy compatibility. Supports game/MIDI port. Extended Functions for Greater Value! Unified System Diagnostic Manager (USDM) - monitor in Windows system temperatures, voltages, etc. Hardware monitoring functions provided by VIA VT82C686A chipset. Wake On Lan (WOL) - use WOL compatible network card to power on system. Designed with VIA's Apollo Promedia 8601chipset, the EP-3VWM is a high quality motherboard built by EPoX in the industry standard Micro ATX format. In addition to the built-in Trident Blade3D for high performance graphics, this board offers three industry standard PCI and one ISA expansion bus as well as many other advanced system and BIOS features. For full feature system designs, the Apollo Promedia 8601 is paired with the VIA VT82C686A super south bridge. Highly advanced, the EP-3VWM combines integrated AC-97 audio support for SoundBlaster Pro and FM synthesis legacy audio, super I/O, and hardware monitoring capabilities. The built-in AGP using Trident Blade3D delivers rich graphics capabilities for running 2D/3D software and Internet applications. Two bus mastering ATA 33/66 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connection of remo te devices. Plus this mainboard is already equipped with the new Intel standardized Audio-Modem-Riser Slot (AMR) providing connectors for Audio and Modem at the system's I/O backplane. Quick View...Model Chipset EP-3VBA2 & EP-3VCA VIA Apollo Pro 133A EP-3VWM VIA Apollo Promedia 8601 EP-3VCA2 VIA Apollo Pro 133A EP-6VBA2 VIA Apollo Pro 133A CPU Celeron Pentium III FC-PGA Celeron PGA VIA Cyrix III Pentium III FC-PGA Celeron PGA VIA Cyrix III Pentium II Pentium III Celeron Cache ISA/PCI 1/5 + 1 AGP + 1 AMR 1/3 + 1 AMR 0/5 + 1 AGP + 1 AMR 1/5 + 1 AGP + 1 AMR SIMM/DIMM 0/3 0/2 0/3 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX M. ATX ATX ATX Others UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, Trident graphics. UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
