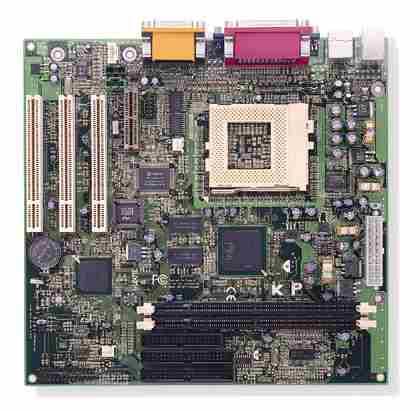

EP-3WXM4 EPOX
Supports Socket 370 Processors. Intel PPGA 370 Celeron. Intel 810 PCIset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard, Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard Micro ATX form factor. 232mm x 220mm. UltraDMA-33 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. UltraDMA-66 supported on EP-3WXM4 only. 66MHz Front Side Bus. 2x DIMM Slots for SDRAM. 512MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 3 (32-bit) PCI & 1 AMR. AGP supports 1x and 2x modes. Onchip i752 AGP video & audio. Supports 4MB display cache (EP-3WXM4 only). Onboard AC97 2.1/2.0 Digital Audio. Dual full-duplex Direct Sound channels. Supports game or MIDI port. Manual available for download! 1039KB. Extended Functions for Greater Value! PCI v2.2 compliant. Keyboard Power On (KBPO) - use keyboard to power on system. Easy Setting SIngle Jumper (ESSJ) - single jumper F.S.B. selection. Unified System Diagnostic Manager (USDM) - monitor in Windows system temperatures, voltages, etc. Hardware monitoring functions provided by Winbond W83627HF-AW. Wake On Lan (WOL) - use WOL compatible network card to power on system. SB-Link - for DOS legacy support on compatible SB-Link enabled sound cards. Hardware sleep/resume. The EP-3WXM and EP-3WXM4 are high quality motherboards built by EPoX in the industry standard Micro ATX format. They are based upon the Intel 810 series chipset providing high performance Intel i752 2D/3D graphics and AC97 PCI based sound. In addition to the onboard video and sound these boards offers three industry standard PCI and one AMR expansion buses as well as many other advanced system and BIOS features. Two bus mastering ATA 33 EIDE ports (ATA-66 support included on EP-3WXM4) are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. In addition an Ir Da infrared port allows the connection of remote devices. Plus this mainboard is already equipped with the new Intel standardized Audio-Modem-Riser Slot (AMR) providing connectors for modem devices at the system's I/O backplane Quick View... Model Chipset EP-3WXA4 Intel 810 EP-3WXA4Y Intel 810 EP-3WXM Intel 810 EP-3WXM4 Intel 810 CPU Celeron 370 Celeron 370 Celeron 370 Celeron 370 Cache ISA/PCI 0/5 + 1 AMR 0/5 + 1 AMR 0/3 + 1 AMR 0/3 + 1 AMR SIMM/DIMM 0/2 0/2 0/2 0/2 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX MicroATX MicroATX Others UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound, i752 video w/4MB display cache UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, i752 video w/4MB display cache, Yamaha 744B sound. UltraDMA-33/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound, i752 video UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound, i752 video w/4MB display cache CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
