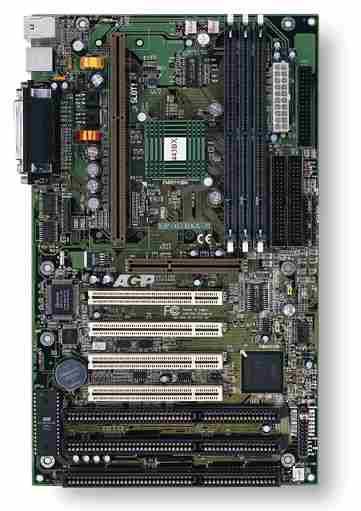

EP-61BXA-M EPOX
Supports Slot 1 Processors. Intel Pentium II, Pentium III, & Celeron. Intel 440BX AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard, Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 185mm x 305mm. UltraDMA-33 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 66/100MHz Front Side Bus. 3x DIMM Slots for SDRAM. 768MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 4 (32-bit) PCI, 2 ISA, & 1 AGP. AGP supports 1x and 2x modes. Manual available for download! 926KB. Extended Functions for Greater Value! Keyboard Power On (KBPO) - use keyboard to power on system. Easy Setting Single Jumper (ESSJ) - single jumper F.S.B. selection. Unified System Diagnostic Manager (USDM) - monitor in Windows system temperatures, voltages, etc. Hardware sleep/resume. Resume by alarm. Power loss recovery. The EP-61BXA-M is based on the Intel 440BX chipset, an AGPset offering a 100MHz Bus Clock, supporting a single Slot-1 Pentium II or Pentium III operating at 233-550 MHz. The AGP Slot is compatible with any AGP compliant adapter providing an immediate doubling (or quadruple) in the maximum available 2D/3D Graphics Bandwidth without reducing performance of other PCI cards. AGP Technology also allows Virtual Reality applications to use as much texture buffer space as they need without expensive card or hardware upgrades. The bundled feature USDM, another exclusive innovation from EPoX and supported by the EP-61BXA-M, provides you the important real-time information to monitor and control your system for safer and more stable computing in mission-critical Enterprise, Internet and Commerce applications. Quick View...Model Chipset EP-61BXA-M Intel 82440BX KP6-LA Intel 82440LX EP-61LXA-M Intel 82440LX KP6-LS Intel 82440LX CPU Pentium II Deschutes Processor Pentium II Pentium II Dual Pentium II Cache ISA/PCI 3/4 + 1 AGP 3/4 + 1 AGP 3/4 + 1 AGP 3/4 + 1 AGP SIMM/DIMM 0/3 4/3 0/3 0/4 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports USDM UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
