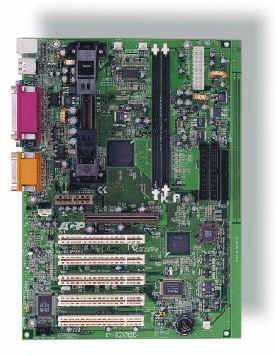

EP-6CXA2C EPOX
Supports Slot1 Processors. Intel Pentium II, & Pentium III. Intel 820 AGPset. Winbond LPC Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports, Fast IR. USB. 2 supported onboard, Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 190mm. UltraDMA-66 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4 & UltraDMA-33. 66/100/133MHz Front Side Bus. 184pin RIMM x 2 for PC800 RDRAM. 512MB max. supported. (Max 32 devices). PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 5 (32-bit) PCI, 1 AGP, and 1 AMR. AGP supports 1x, 2x, and 4x modes. Onboard CMI8738 audio. Supports SPDIF function (adapter and cable optional). 3D sound effects. Supports up to 4 speaker surround effect. Supports MP3 and AC3 audio rack. Extended Functions for Greater Value! PCI v2.2 compliant. Keyboard Power On (KBPO) - use keyboard to power on system. Unified System Diagnostic Manager (USDM) - monitor in Windows system temperatures, voltages, etc. Hardware monitoring functions provided by Winbond W83627HF-AW. Wake On Lan (WOL) - use WOL compatible network card to power on system. SB-Link - for DOS legacy support on compatible SB-Link enabled sound cards. Hardware sleep/resume. The EP-6CXA2C is a high quality motherboards built by EPoX in the industry standard ATX format. It is based upon the Intel 820 series chipset providing a high performance Slot 1 based solution. In addition to the onboard sound this board offers five industry standard PCI 2.2 slots, one AGP 4x slot as well as 1 AMR expansion buses. The board also offers many other advanced system and BIOS features. Two bus mastering ATA 33/66 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connection of remote devices. Plus this mainboard is already equipped with the new Intel standardized Audio-Modem-Riser Slot (AMR) providing connectors for modem devices at the system's I/O backplane. Quick View... Model Chipset EP-3WXA4 Intel 810 EP-3WXA4Y Intel 810 EP-6CXA2C Intel 820 EP-3WXM4 Intel 810 CPU Celeron 370 Celeron 370 Intel Pentium II, Intel Pentium III Celeron 370 Cache ISA/PCI 0/5 + 1 AMR 0/5 + 1 AMR 0/5 + 1 AGP, + 1 AMR 0/3 + 1 AMR SIMM/DIMM 0/2 0/2 2 RIMM SLOTS 0/2 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX MicroATX Others UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound, i752 video w/4MB display cache UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, i752 video w/4MB display cache, Yamaha 744B sound. UltraDMA-33/66, ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, sound. UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, USDM, WOL, AC97 sound, i752 video w/4MB display cache CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
