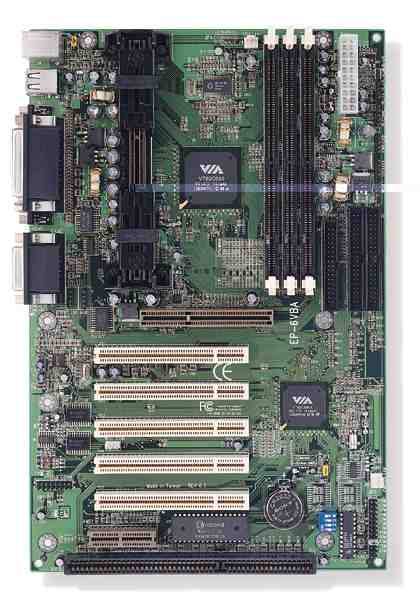

EP-6VBA EPOX
Supports Slot 1 Processors. Intel Pentium II, Pentium III, & Celeron. VIA Apollo Pro133 AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard, 2 more can be added as option! Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 200mm. UltraDMA-66 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4 & UltraDMA-33. 66/100MHz Front Side Bus. 3x DIMM Slots for SDRAM. 768MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 5 (32-bit) PCI, 2 ISA, 1 AGP & 1 AMR slots. AGP supports 1x and 2x modes. Onchip AC-97 Audio. Dual full duplex Direct Sounds channels. H/W SoundBlaster Pro DOS Legacy compatible. FM Synthesis for legacy compatibility. Supports game/MIDI port. Manual available for download! 926KB. Extended Functions for Greater Value! Keyboard Power On (KBPO) - use keyboard to power on system. Easy Setting Single Jumper (ESSJ) - single jumper F.S.B. selection. Easy DIP switch to select CPU multiplier. Wake On Lan (WOL) - use WOL compatible network card to power on system. Unified System Diagnostic Manager (USDM) - monitor in Windows system temperatures, voltages, etc. Hardware monitoring functions provided by VIA VT82C686A chipset. Hardware sleep/resume. Designed with VIA's Apollo Pro Plus chipset, the EP-6VBA is a high quality motherboard built by EPoX in the industry standard ATX format. In addition to the AGP interface for high performance graphics, this board offers five industry standard PCI and one ISA expansion buses as well as many other advanced system and BIOS features. For full feature system designs, the Apollo Pro Plus is paired with the VIA VT82C686 super south bridge. Highly advanced, the EP-6VBA combines integrated AC-97 audio support for SoundBlaster Pro and FM synthesis legacy audio, super I/O, and hardware monitoring capabilities. Two bus mastering ATA 33/66 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connection of remote devices. Plus this mainboard is already equipped with the new Intel standardized Audio-Modem-Riser Slot (AMR) providing connectors for Audio and Modem at the system's I/O backplane. Actual board may differ from picture. Quick View...Model Chipset EP-BX3 Intel 82440BX EP-61BXA-M Intel 82440BX EP-61LXA-M Intel 82440LX EP-6VBA VIA Apollo Pro+ CPU Pentium II Pentium III Celeron Pentium II Pentium III Celeron Pentium II Celeron Pentium II Pentium III Celeron Cache ISA/PCI 2/5 + 1 AGP 3/4 + 1 AGP 3/4 + 1 AGP 1/5 + 1 AGP + 1 AMR SIMM/DIMM 0/3 0/3 0/3 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK ltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
