EP-8HDA3+ - EPOX

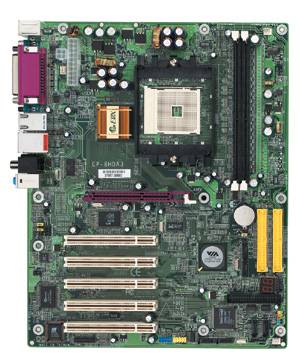

Package contents: • Mainboard • 2 ultra ATA flat IDE cables • FDC cable • S-ATA data and power cables • S-ATA with game port bracket • I/O shield • User manual • S-ATA RAID setup guide • S-ATA setup disks • Multi lingual easy installation guide • Driver CD utilities and software Download high-res board image 766 KB Specifications for EP-8HDA3+: • For Socket-754 based AMD Athlon 64 processors • VIA K8T800 + VT8237 Chipset • 1 Floppy drive controller - 2 serial ports - 1 parallel port • AGP 8x for 1.5v graphics cards, 5 PCI slots • 2 standard IDE ports for ATA-133, backwards compatible with ATA-100/66 • 2 S-ATA ports from onboard southbridge VT8237 • 4 S-ATA ports from Silicon Image Sil-3114 controller supports RAID 0,1,and 10 • 2 DDR SDRAM banks for Maximum 2 GB memory DDR333/400 • 4 USB 2.0 ports, 4 extra by optional USB back-panel cables • Multiphase power solution for increased stability, including 12v supply adaptation for CPU • Onboard sound, 6 channel Realtek ALC65x Audio Supports Digital SPDIF and software AC-3 Supports Automatic Jack Sensing feature • Standard ATX format 305mm x 245mm x 40mm, ATX Size • Onboard 3Com 3C940 1 Gb Ethernet controller • Onboard P80P diagnostics LED I/O Connections: CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
