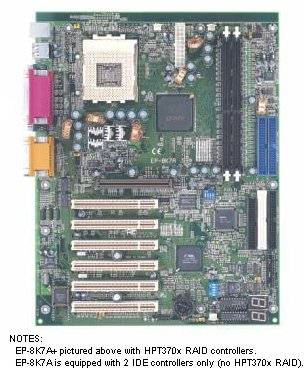

EP-8K7A+ EPOX



Supports Socket A Processors.
AMD Athlon & Duron.
AMD-761 + VIA 686B AGPset.
I/O Controller.
1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports.
USB.
2 supported onboard. 2 additional as option.
Award PnP BIOS. Flash upgradeable.
120MB ATAPI floppy drive and ZIP support!
Standard ATX form factor.
305mm x 245mm ATX.
UltraDMA-100 EIDE Controllers. (Up to 4 IDE devices).
Backwards compatible with PIO mode 3/4 & UltraDMA-33/66.
Extra IDE Port by HPT370/Ultra DMA 66/100 & IDE RAID x 2 (Up to 4 Devices)
200/266MHz Front Side Bus.
2x DDR-SDRAM Slots for PC1600/PC2100.
1GB max. supported.
Memory not included.
PS/2 connectors.
1 PS/2 mouse, 1 PS/2 keyboard.
6 (32-bit) PCI, & 1 AGP.
AGP supports 1x, 2x and 4x modes.
Built-in AC97 Digital Audio (by VT82C686B) :
Dual full-duplex Direct Sound channels
H/W Sound Blaster Pro for DOS legacy compatibility
FM synthesis for legacy compatibility
Supports game and MIDI port
Extended Functions for Greater Value!
Keyboard Power On (KBPO) - use keyboard to power on system.
Supports exclusive USDM (Unified System Diagnostic Manager) under Win9x/NT4 - monitor in Windows system temperatures, voltages, etc.
Hardware monitoring functions provided by VIA VT82C686B chipset.
Supports CPU Vcore & Vio setting by jumpers.
Supports CPU multiplier by switches.
Supports CPU clock by BIOS options.
Hardware sleep/resume.
P80P Debug (POST) Card onboard design with LED display
EPoX's EP-8K7A+ is designed to be the ultimate Socket A mainboard for home users and gamers designed for AMD Athlon and Duron processors. Engineered using the hybrid combination of the AMD 760 Northbridge and the VIA VT82C686B Southbridge chipsets the EP-
8K7A+ is a high quality mainboard built using the ATX format. The EP-8K7A+ also includes courtesy of the VIA southbridge chipset UltraDMA-100 (ATA/100). ATA/100 drives can transfer data up to 100 MB per/second, an increase of more than 50 percent when compared to previous generations of technology. Of course the EP-8
K7A+ is fully backward compatible with all IDE/ATAPI devices - including Ultra DMA/ATA 66, 33, EIDE Fast ATA-2, IDE drives and CD ROM drives. The UDMA 100 protocol has broken the longstanding UDMA 33 and 66 standards. With the addition of the HPT370 PCI Dual Channel UltraDMA-100 RAID Controller four more UltraDMA-100 devices can be installed. Just as its name implies, the IDE-RAID HPT370 supports RAID 0, 1 and 0+1. This is ideal for small businesses that need to mirror
their servers - striping large capacity >27GB hard disk is a much cheaper solution than SCSI RAID. EPoX mainboards comes fully equipped with latest technical specifications: One 4X AGP bus slot, six PCI master bus slots, two USB ports (two additional supported by an optional USB cable), and keyboard power on feature (KBPO). Wake On LAN (WOL), onboard PO
ST display, support for USDM (Unified System Diagnostic Manager), plus much more! Reviews:
Cool OC (Germany) Overclocking Award
TempleofTech Review - "I truly recommend the EPOX 8K7A+ for anyone looking for a high-end socketA motherboard." Hothardware.com Editors Choice - "Reviewing the Epox 8K7A+ was an absolute pleasure. This is a true enthusiasts motherboard, offering all of the features we crave wrapped in a high performing, stable package. The Epox 8K7A+ receives a rare HotHardware Edi
tors Choice Award/" Tomshardware.com Review - "The Epox EP-8K7A+ is the winner in terms of features, as it comes with ATA/100 RAID, a sound system and a debug module."
Hardware-TEST.dk *Editors Choice No.1* - "The best motherboard i have ever tested." PC Hardware Editors Choice - "Performance, quality, stability and price made us to declare Epox 8K7A+ the "Editors choice"."
Noticias3d Editors Choice
Motherboards.org Editors Choice - "This is one hell of a good motherboard and has features to impress even the most skeptical of users or integrators."
PC Magazine June Issue Review
PC2000 June Issue AMD DDR MB Test
PC SHOPPER June Issue Review
Digitmatrix June Issue Review
DOS/V June Issue Review
AMDmb.com Editors Choice - "EPoX has once again offered AMD supporters a stable, high-performance motherboard based on a now mature chipset..."
KHV2001 Overclockers Choice - "8K7A+ is the best SocketA motherboard that KHV2001 has ever reviewed. KHV2001 awarded 8K7A+ Overclockers Choice..."
Socket A Sock it to em - "EPoX continues to impress with their motherboards offering for the Athlon. The 8K7A+ propels them to the top in the 760 chipset arena."
Quick View...Model
Chipset EP-EP-8KTA3
VIA KT133A EP-7KXA
VIA KX133 EP-8K7A
AMD 761+VIA 686B EP-8K7A+
AMD 761+VIA 686B
CPU AMD Athlon & Duron (Socket A) AMD Athlon (Slot A) AMD Athlon & Duron (Socket A) AMD Athlon & Duron (Socket A)
ISA/PCI 1/6 + 1 AGP 1/5 + 1 AGP + 1 AMR 0/6 + 1 AGP 0/6 + 1 AGP
SIMM/DIMM 0/4 0/3 0/0 + 2 DDR SLOTS 0/0 + 2 DDR SLOTS
BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM
Switching Regulator Yes Yes Yes Yes
Form Factor ATX ATX ATX ATX
Others UltraDMA-33/66/100ACPI**
2S/1P/USB, IDE/FDD ports, KBPO, USDM, AC97 sound UltraDMA-66/ACPI**
2S/1P/USB, IDE/FDD ports, AC97 sound UltraDMA-66/100/ACPI**
2S/1P/USB, IDE/FDD ports, AC97 sound, DDR memory support UltraDMA-66/100+RAID/ACPI**
2S/1P/USB, IDE/FDD ports, AC97 sound, DDR memory support

CPU Support
Compatibility

RAM Memory Support
Compatibility
