EP-8KDA3+ - EPOX

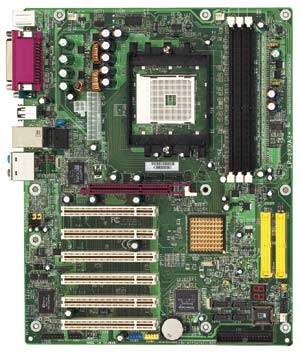

Package contents: • Mainboard • 2 ultra ATA Round cables • FDC cable • S-ATA data and power cables • User manual • Multi lingual easy installation guide • I/O shield • Driver CD utilities and software • mini RAM heatsinks * • Screwdriver toolset * • USB bracket * • Game+COm bracket * * Part of the EPoX Powerpack, only on EP-8KDA3+ Download high-res board image 1,27 MB 8KDA Series Box Specifications for EP-8KDA3+ / EP-8KDA3J: • For Socket-754 based AMD Athlon 64 processors • nVidia nForce3 250GB Host Controller • 1 Floppy drive controller - 2 serial ports - 1 parallel port • AGP 8x for 1.5v graphics cards, 6 PCI slots • 2 standard IDE ports for ATA-133, backwards compatible with ATA-100/66 • 2 S-ATA ports from onboard nVidia host controller with RAID • nVRAID for combined P-ATA and S-ATA RAID • 4 extra S-ATA ports from Silicon Image Sil-3114 controller with RAID 0,1,and 10 (only on 8KDA3+) • 3 DDR SDRAM banks for Maximum 3 GB memory DDR333/400 • 4 USB 2.0 ports, 4 extra by optional USB back-panel cables • Multiphase power solution for increased stability, including 12v supply adaptation for CPU 8 channel Onboard sound from Realtek ALC850 Audio with Digital SPDIF and Automatic Jack Sensing feature (8KDA3+ adds optical output) • On-chip Gigabit Ethernet 1000Mbps providing faster throughput than standard PCI Gigabit chips • Hardware Firewall for internet protection against hackers • Onboard P80P diagnostics LED • Standard ATX format 305mm x 245mm x 40mm, ATX Size CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
