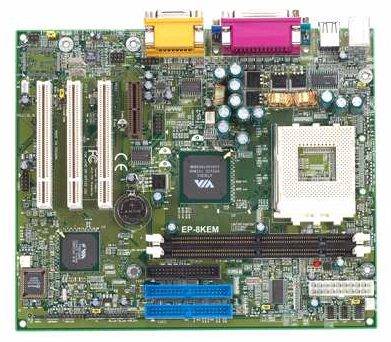

EP-8KEM EPOX
Supports Socket A Processors. AMD Athlon TM, Duron TM Processors, Socket A. VIA Apollo KLE133 AGPset. I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard. 2 additional as option. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard Micro ATX form factor. 245mm x 205mm Micro ATX. UltraDMA-100 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4 & UltraDMA-66. 200MHz Front Side Bus. 2x DIMM Slots for SDRAM. 1GB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 3 (32-bit) PCI & 1 Panel Link. Built-in AGP video with Trident Blade 3D core. Onboard audio AC97 based on VIA (standard) or Built-in C-Media CMI8738/PCI-SXC PCI sound (optional). Extended Functions for Greater Value! Supports exclusive USDM(Unified System Diagnostic Manager) and Hardware Monitoring Function by VT82C686B Supports exclusive KBPO (KeyBoard Power On) Supports Power Loss Recovery Function Supports STR(Suspend To RAM) power saving Function Supports CPU clock (1 or 2MHz increment) setting via Jumper & BIOS Supports Wake-On-LAN Function. Designed with VIA's KLE133 chipset, the EP-8KEM is a high quality motherboard built by EPoX in the industry standard Micro ATX format. In addition to the onboard Trident AGP for high performance graphics, this board offers three industry standard PCI and one panel link expansion buses as well as many other advanced system and BIOS features. For full feature system designs, the Apollo KLE133 is paired with the VIA VT82C686B super south bridge. Highly advanced, the EP-8KEM combines integrated AC-97 audio support for SoundBlaster Pro and FM synthesis legacy audio, super I/O, and hardware monitor ing capabilities. Two bus mastering ATA 33/66/100 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connection of remote devices. Quick View...Model Chipset EP-7KXA VIA KX133 EP-8KTA VIA KT133 EP-8KTM VIA KT133 EP-8KEM VIA KT133 CPU AMD Athlon (Slot A) AMD Athlon/Duron (Socket A) AMD Athlon/Duron (Socket A) AMD Athlon/Duron (Socket A) ISA/PCI 1/5 + 1 AGP + 1 AMR 1/6 + 1 AGP 0/3 + 1 AGP 0/3 + 1 PANEL LINK SIMM/DIMM 0/3 0/3 0/3 0/2 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX M.ATX M.ATX Others UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, AC97 sound UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, AC97 sound UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, AC97 sound UltraDMA-100/ACPI** 2S/1P/USB, IDE/FDD ports, AC97 sound, Trident AGP video. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
