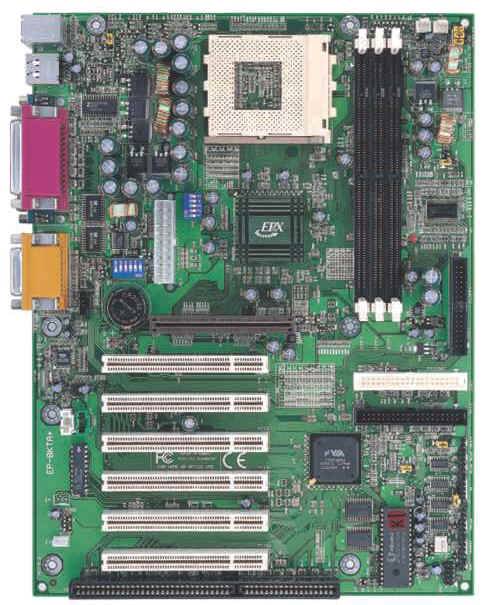

EP-8KTA EPOX
Supports Socket A Processors. AMD Athlon & Duron. VIA Apollo KT133 AGPset. I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard. 2 additional as option. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 220mm ATX. UltraDMA-66 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4 & UltraDMA-33. 200MHz Front Side Bus. 3x DIMM Slots for SDRAM. 1.5GB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 6 (32-bit) PCI, 1 ISA, & 1 AGP. AGP supports 1x, 2x and 4x modes. Extended Functions for Greater Value! Keyboard Power On (KBPO) - use keyboard to power on system. Unified System Diagnostic Manager (USDM) - monitor in Windows system temperatures, voltages, etc. Hardware monitoring functions provided by VIA VT82C686A chipset. Supports CPU Vcore setting by DIP switch. Wake On Lan (WOL) - use WOL compatible network card to power on system. Wake On Modem (WOM) - use WOM compatible modem card to power on system. Hardware sleep/resume. Designed with VIA's KT133 chipset, the EP-8KTA is a high quality motherboard built by EPoX in the industry standard ATX format. In addition to the AGP interface for high performance graphics, this board offers six industry standard PCI, one ISA, one 4x co mpatible AGP expansion buses as well as many other advanced system and BIOS features. For full feature system designs, the Apollo KT133 is paired with the VIA VT82C686A super south bridge. Highly advanced, the EP-8KTA combines integrated AC-97 audio support for SoundBlaster Pro and FM synthesis legacy audio, super I/O, and hardware monitori ng capabilities. Two bus mastering ATA 33/66 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connection of remo te devices. Quick View...Model Chipset EP-ZX370Y Intel 82440ZX EP-V370A VIA Apollo Pro EP-7KXA VIA KX133 EP-8KTA VIA KT133 CPU Celeron 370 Celeron 370 AMD Athlon (Slot A) AMD Athlon (Socket A) Cache ISA/PCI 1/3 + 1 AGP 2/4 + 1 AGP 1/5 + 1 AGP + 1 AMR 1/6 + 1 AGP SIMM/DIMM 0/2 0/3 0/3 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor MicroATX ATX ATX ATX Others UltraDMA-33/ACPI** 2S/1P/USB, IDE/FDD ports, KBPO, USDM, WOL, Yamaha Sound UltraDMA-33/ACPI** 2S/1P/USB, IDE/FDD ports, KBPO, USDM, WOL, SBLINK UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, AC97 sound UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, AC97 sound CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
