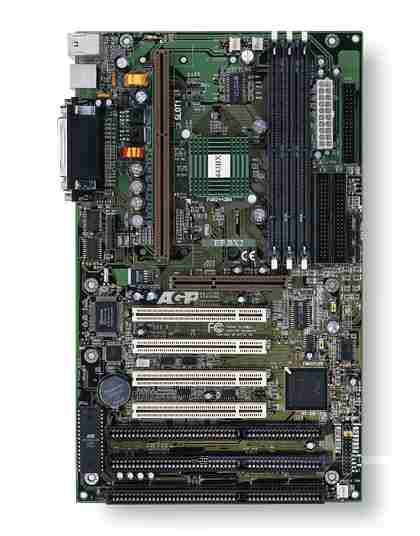

EP-BX2 EPOX
Supports Slot 1 Processors. Intel Pentium II, Pentium III, & Celeron. Intel 440BX AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 304mm x 180mm UltraDMA-33 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 66/100MHz Front Side Bus. 3x DIMM Slots for SDRAM. 768MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 4 (32-bit) PCI, 3 ISA, & 1 AGP. AGP supports 1x and 2x modes. Manual available for download! 818KB. Extended Functions for Greater Value! Keyboard Power On (KBPO) - use keyboard to power on system. Easy Setting Single Jumper (ESSJ) - single jumper F.S.B. & multiplier selection. Unified System Diagnostic Manager (USDM) - monitor in Windows system temperatures, voltages, etc. Hardware monitoring functions provided by LM75/78. External Modem Ring-In power on - use external modem to power on system. Wake On Lan (WOL) - use WOL compatible network card to power on system. Hardware sleep/resume. The EP-BX2 is based on the Intel 440BX chipset, an AGPset offering a 100MHz Bus Clock, supporting a single Slot-1 Pentium II or Pentium III operating at 233-550 MHz. The AGP Slot is compatible with any AGP compliant adapter providing an immediate doubling (or quadruple) in the maximum available 2D/3D Graphics Bandwidth without reducing performance of other PCI cards. AGP Technology also allows Virtual Reality applications to use as much texture buffer space as they need without expensive card or hardware upgrades. The bundled feature USDM, another exclusive innovation from EPoX and supported by the EP-BX2, provides you the important real-time information to monitor and control your system for safer and more stable computing in mission-critical Enterprise, Internet and Commerce applications. Quick View...Model Chipset EP-BX2 Intel 82440BX EP-BX3 Intel 82440BX EP-61BXA-M Intel 82440BX EP-61LXA-M Intel 82440LX CPU Pentium II Pentium III Celeron Pentium II Pentium III Celeron Pentium II Pentium III Celeron Pentium II Celeron Cache ISA/PCI 3/4 + 1 AGP 2/5 + 1 AGP 3/4 + 1 AGP 3/4 + 1 AGP SIMM/DIMM 0/3 0/3 0/3 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK ltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
