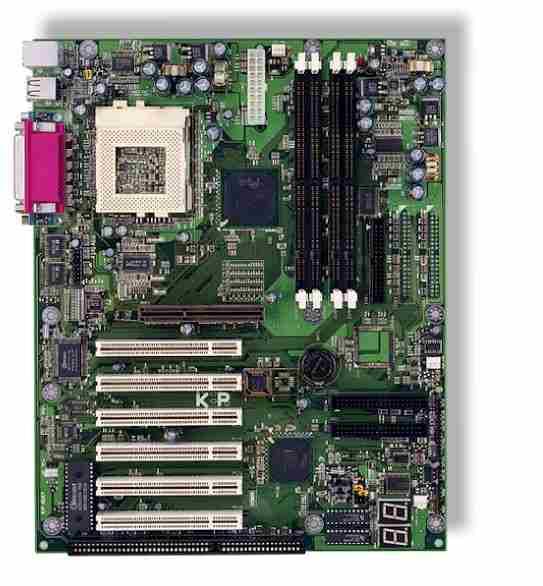

EP-BX7 EPOX
Supports Socket 370 Processors. Intel CeleronTM Processor(66MHz FSB) with PPGA socket 370 packing: Operating at 300-500MHz Intel Pentium® III/CoppermIne Processors(100MHz FSB) with FC-PGA socket 370 packing: Operating at 500-750MHz Intel 440BX AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard. 5 support max (optional). Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 240mm UltraDMA-33 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 66/100MHz Front Side Bus. 4x DIMM Slots for PC100 SDRAM. 1GB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 6 (32-bit) PCI, 1 ISA, & 1 AGP. AGP supports 1x and 2x modes. Extended Functions for Greater Value! Supports exclusive USDM (Unified System Diagnostic Manager) and Hardware Monitoring Function by W83782D Supports exclusive KBPO (KeyBoard Power On) Supports CPU Vcore / VIO and Clock (1MHz Linear Stepping) Setting Supports AGP Bus 1/1 & 2/3 ratio FSB Setting Supports SB-Link and Wake-On-LAN functions Onboard POST diagnostic function. The EP-BX7 is based on the Intel 440BX chipset, an AGPset offering a 100MHz Bus Clock, supporting a single Socket 370 (FC-PGA370) Pentium III. The AGP Slot is compatible with any AGP compliant adapter providing an immediate doubling (or quadruple) in the maximum available 2D/3D Graphics Bandwidth without reducing performance of other PCI cards. AGP Technology also allows Virtual Reality applications to use as much texture buffer space as they need without expensive card or hardware upgrades. The bundled feature USDM, another exclusive innovation from EPoX and supported by the EP-BX7, provides you the important real-time information to monitor and control your system for safer and more stable computing in mission-critical Enterprise, Internet a nd Commerce applications. Quick View...Model Chipset EP-BX5 Intel 82440BX EP-BX6 Intel 82440BX EP-BX7 Intel 82440BX EP-BX7+ Intel 82440BX CPU Pentium II Pentium III Celeron Pentium II Pentium III Celeron Pentium III Celeron Pentium III Celeron ISA/PCI 2/5 + 1 AGP 1/6 + 1 AGP 1/6 + 1 AGP 1/6 + 1 AGP SIMM/DIMM 0/4 0/3 0/4 0/4 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK, POST UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK, POST UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK, POST, IDE RAID/UDMA66 CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
