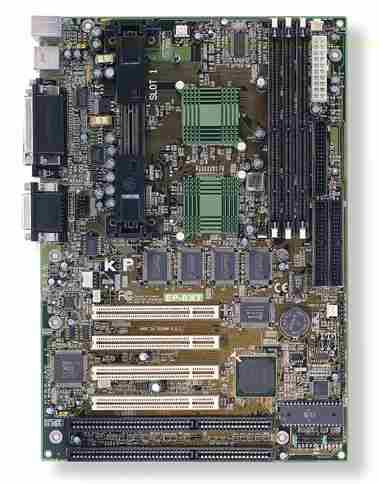

EP-BXT EPOX
Supports Slot 1 Processors. Intel Pentium II, Pentium III, & Celeron. Intel 440BX AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 210mm UltraDMA-33 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 66/100MHz Front Side Bus. 3x DIMM Slots for SDRAM. 768MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 4 (32-bit) PCI, & 2 ISA. Onchip AGP video & audio. Intel i740 AGP video. Yamaha 16-bit PCI sound. Manual available for download! 1130KB. Extended Functions for Greater Value! Keyboard Power On (KBPO) - use keyboard to power on system. Easy Setting Dual Jumper (ESDJ) - dual jumper F.S.B. & multiplier selection. Unified System Diagnostic Manager (USDM) - monitor in Windows system temperatures, voltages, etc. Hardware monitoring functions provided by LM75/78. Hardware sleep/resume. The EP-BXT is based on the Intel 440BX chipset, a chipset offering a 100MHz Bus Clock, supporting a single Slot-1 Pentium II or Pentium III. It supports many advanced ACPI Power Management features meeting the requirements of PC97 specification and Microsoft's Windows 98, saving power usage in the system and peripherals. Moreover, the on-board Ultra DMA-33 hard drive interface combines the lower cost IDE form-factor with SCSI-like data transfers speeds up to a blistering 33MB/sec! The built-in i740 graphics chipset is an AGP compliant adapter providing an immediate doubling (or quadruple) in the maximum available 2D/3D Graphics Bandwidth without reducing performance of other PCI cards. AGP Technology also allows Virtual Reality applications to use as much texture buffer space as they need without expensive card or hardware upgrades. (i740 video adapter is built-in the motherboard therefore no AGP slot is present.) The on-board design of Yamaha YMF724E (PCI based chipset), a leading sound chip, creates tremendous 3D enhanced sound effects for your system. The built-in specifications of OPL3 and MPU401 make you compatible with the most popular FM-synthesizer and MIDI/JOYSTICK ports. Together with the compatibility of DOS/Windows Sound Blaster games, it will let you really enjoy the fun and entertainment from your applications. The bundled feature USDM, another exclusive innovation from EPoX and supported by the EP-BXT, provides you the important real-time information to monitor and control your system for safer and more stable computing in mission-critical Enterprise, Internet and Commerce applications. Quick View...Model Chipset EP-BXC-A Intel 82440BX EP-BX3 Intel 82440BX EP-BXT Intel 82440BX EP-61LXA-M Intel 82440LX CPU Pentium II Pentium III Celeron Pentium II Pentium III Celeron Pentium II Pentium III Celeron Pentium II Celeron Cache ISA/PCI 1/3 + 1 AGP 2/5 + 1 AGP 2/4 3/4 + 1 AGP SIMM/DIMM 0/3 0/3 0/3 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, YAMAHA SOUND UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, YAMAHA SOUND, i740 VIDEO. UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
