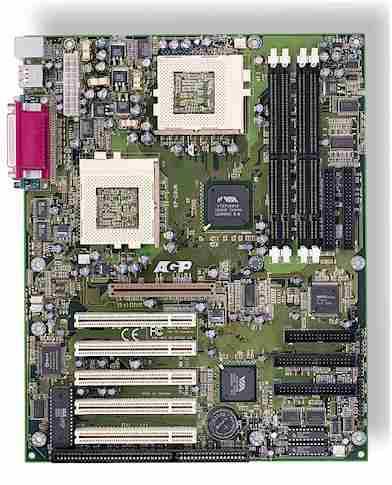

EP-D3VA EPOX
Supports Dual FC-PGA Processors. Single/Dual Intel FC-PGA Pentium III or Single PPGA370 Celeron. VIA Apollo Pro 133A AGPset. I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 243mm. UltraDMA-66 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4 & UltraDMA-33. Extra IDE Port by HPT370/Ultra DMA 66/100 & IDE RAID x 2 (Up to 4 Devices) 66/100/133MHz Front Side Bus. 4x DIMM Slots for SDRAM. DRAM Size: 32MB - 1.5GB PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 5 (32-bit) PCI, 1 ISA & 1 AGP. AGP supports 1x, 2x, and 4x modes. Extended Functions for Greater Value! Keyboard Power On (KBPO) - use keyboard to power on system. Wake On Lan (WOL) - use WOL compatible network card to power on system. Unified System Diagnostic Manager (USDM) - monitor in Windows system temperatures, voltages, etc. Hardware sleep/resume. The EP-D3VA is based on the VIA Apollo Pro133A chipset, an AGPset offering a 66/100/133MHz Bus Clock, supporting dual Socket 370 (FC-PGA370) Pentium III. The AGP Slot is compatible with any AGP compliant adapter providing an immediate doubling (or quadrup le) in the maximum available 2D/3D Graphics Bandwidth without reducing performance of other PCI cards. AGP Technology also allows Virtual Reality applications to use as much texture buffer space as they need without expensive card or hardware upgrades. Also included is the IDE-RAID HPT370 controller. Just as its name implies, the IDE-RAID HPT370 supports RAID 0, 1 and 0+1. This is ideal for small businesses that need to mirror their servers - striping large capacity >27GB hard disk is a much cheaper solu tion than SCSI RAID for A/V. The UDMA 100 protocol has broken the longstanding UDMA 33/66 standard for incredible speed. The bundled feature USDM, another exclusive innovation from EPoX and supported by the EP-D3VA, provides you the important real-time information to monitor and control your system for safer and more stable computing in mission-critical Enterprise, Internet and Commerce applications. Quick View...Model Chipset EP-61BXA-M Intel 82440BX EP-6VBA VIA Apollo Pro 133 EP-6VBA2 VIA Apollo Pro 133a EP-D3VA VIA Apollo Pro 133a CPU Pentium II Pentium III Celeron Pentium II Pentium III Celeron Pentium II Pentium III Celeron Dual Pentium III Single Celeron Cache ISA/PCI 3/4 + 1 AGP 1/5 + 1 AGP + 1 AMR 1/5 + 1 AGP + 1 AMR 1/5 + 1 AGP SIMM/DIMM 0/3 0/3 0/3 0/4 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others ltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode. UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AGP 4X mode, IDE RAID/UDMA100. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
