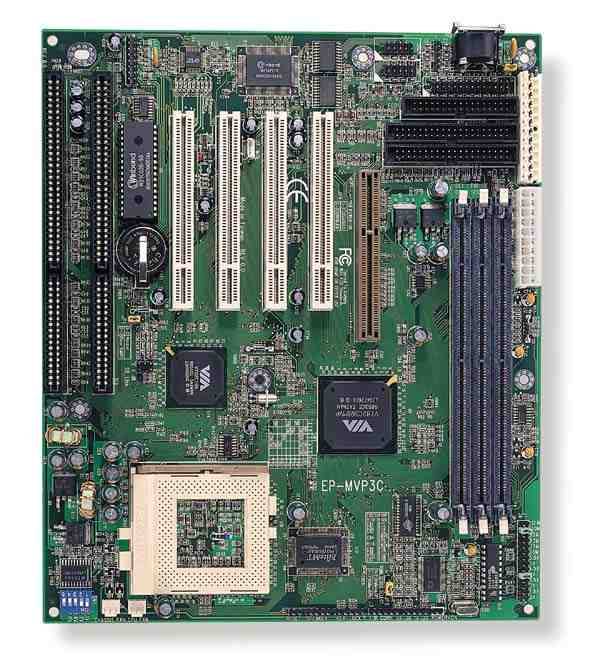

EP-MVP3C EPOX
Supports Socket 7 Processors. AMD, IDT, Intel & Cyrix. EP-MVP3C EP-MVP3C2 VIA MVP3 AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported as option. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard Baby AT form factor. UltraDMA-33 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. UltraDMA-66 supported on EP-MVP3C2 only. * 66/75/83/95/100MHz Host Bus. 3x DIMM Slots for SDRAM. 384MB max. supported. PS/2 connectors. 1 PS/2 mouse. 4 (32-bit) PCI, 2 ISA & 1 AGP. AGP supports 1x and 2x modes. Onboard cache. 512KB. EP-MVP3C manual available for download! 865KB. Extended Functions for Greater Value! Both AT and ATX power supplies supported. Easy Setting Dual Jumper (ESDJ) - dual jumper F.S.B. & multiplier selection. Easy DIP switch to select CPU core voltage. External Modem Ring-In power on - use external modem to power on system. (ATX power supply required.) Wake On Lan (WOL) - use WOL compatible network card to power on system. (ATX power supply required.) Hardware monitoring functions provided by Winbond W83781D chipset. Hardware sleep/resume. The EP-MVP3C and EP-MVP3C2 equipped with VIA MVP3 chipset, an AGPset offering 100MHz bus frequency for upcoming K6 3D or Cyrix M2 CPUs, are based on ZIF socket 7 CPUs.* By providing a massive increase in the bandwidth available between the video card and processor, the unique feature of AGP, supported by MVP3 chipset, improves the speed of rendering and texture for 3D graphics. It supports selected ACPI Power Management functions meeting the requirements of the PC97 specification and Microsoft's Windows 98 power usage savings for the system and peripherals. Moreover, the on-board Ultra DMA-33 Hard Drive interface combines the lower cost IDE form-factor with SCSI-like data transfer speeds - up to a blistering 33MB/sec! Works great with Cyrix and AMD K6-III processors! (Ultra DMA-66 available on the EP-MVP3C2.) * - Due to the possibility of processor (CPU) design changes beyond our control, "Frequency support" is not a strict guarantee of future processor support. Contact support or review our Knowledge base for a list supported processors. (7-1999) Quick View... Model Chipset P55-VP3 VIA VP3 EP-58MVP3C-M VIA MVP3(100MHz) EP-MVP3C VIA MVP3(100MHz) EP-MVP3C2 VIA MVP3(100MHz) CPU Pentium Processor Intel / AMD / Cyrix Pentium Processor Intel / AMD / Cyrix Pentium Processor Intel / AMD / Cyrix Pentium Processor Intel / AMD / Cyrix Cache 512KB 512KB 512KB 512KB ISA/PCI 3/4 + 1 AGP 3/4 + 1 AGP 2/4 + 1 AGP 2/4 + 1 AGP SIMM/DIMM 2/3 0/3 0/3 0/3 BIOS Award / Flash EPROM Award / Flash EPROM Award / Flash EPROM Award / Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX Baby AT Baby AT Baby AT Others UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports WOL UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports WOL UltraDMA-33/66 ACPI** 2S/1P/USB IDE/FDD ports WOL CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
