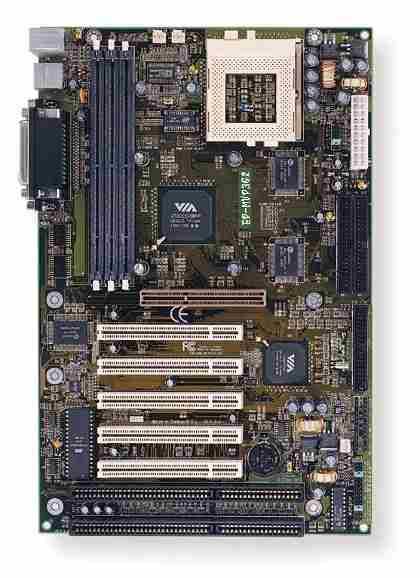

EP-MVP3G-M EPOX
Supports Socket 7 Processors. AMD, IDT, Intel & Cyrix. EP-MVP3G-M EP-MVP3G2 EP-MVP3G5 VIA Apollo MVP3 AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. UltraDMA EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. EP-MVP3G-M supports UltraDMA-33. EP-MVP3G2 supports UltraDMA-66. EP-MVP3G5 supports UltraDMA-66. * 66/75/83/95/100MHz Host Bus. 3x DIMM Slots for SDRAM. 384MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 5 (32-bit) PCI, 2 ISA & 1 AGP. AGP supports 1x and 2x modes. Onboard cache. EP-MVP3G-M supports 1MB. EP-MVP3G2 supports 1MB. EP-MVP3G5 supports 2MB. Manual available for download! 964KB. Extended Functions for Greater Value! Easy Setting Dual Jumper (ESDJ) - dual jumper F.S.B. & multiplier selection. External Modem Ring-In power on - use external modem to power on system. Wake On Lan (WOL) - use WOL compatible network card to power on system. Hardware monitoring functions provided by Winbond W83781D chipset. Hardware sleep/resume. The EP-MVP3G series equipped with VIA MVP3 chipset, an AGPset offering 100MHz bus frequency for upcoming K6 3D or Cyrix M2 CPUs, are based on ZIF socket 7 CPUs. By providing a massive increase in the bandwidth available between the video card and processor, the unique feature of AGP, supported by MVP3 chipset, improves the speed of rendering and texture for 3D graphics. It supports selected ACPI Power Management functions meeting the requirements of the PC97 specification and Microsoft's Windows 98 power usage savings for the system and peripherals. Two bus mastering EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. Works great with Cyrix and AMD K6-III processors. The EP-MVP3 G2 and EP-MVP3G5 models provide ATA-66 UltraDMA controllers. * - Due to the possibility of processor (CPU) design changes beyond our control, "Frequency support" is not a strict guarantee of future processor support. Contact support or review our Knowledge base for a list supported processors. (7-1999) Quick View...Model Chipset EP-51MVP3E-M VIA MVP3(100MHz) EP-MVP3G-M VIA MVP3(100MHz) EP-MVP3G2 VIA MVP3(100MHz) EP-MVP3G5 VIA MVP3(100MHz) CPU Pentium Processor Intel / AMD / Cyrix Pentium Processor Intel / AMD / Cyrix Pentium Processor Intel / AMD / Cyrix Pentium Processor Intel / AMD / Cyrix Cache 1MB 1MB 1MB 2MB ISA/PCI 3/4 + 1 AGP 2/5 + 1 AGP 2/5 + 1 AGP 2/5 + 1 AGP SIMM/DIMM 2/3 0/3 0/3 0/3 BIOS Award / Flash EPROM Award / Flash EPROM Award / Flash EPROM Award / Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports WOL UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports WOL UltraDMA-33/66 ACPI** 2S/1P/USB IDE/FDD ports WOL UltraDMA-33/66 ACPI** 2S/1P/USB IDE/FDD ports WOL CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
