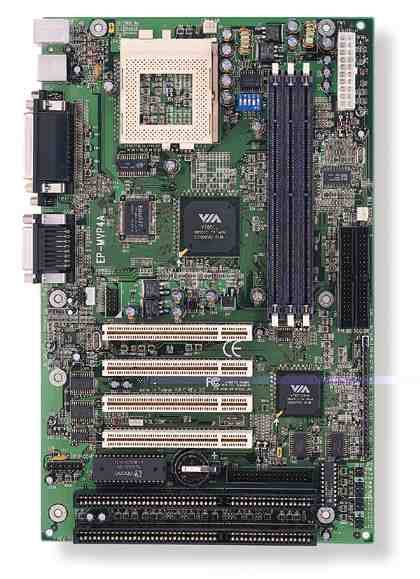

EP-MVP4A EPOX
Supports Socket 7 Processors. AMD, IDT, Intel & Cyrix. VIA Apollo MVP4 AGPset. Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard, 2 more can be added as option! Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. UltraDMA-66 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4 & UltraDMA-33. * 66/75/83/95/100MHz Host Bus. 3x DIMM Slots for SDRAM. 384MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 4 (32-bit) PCI & 2 ISA. Onboard cache. 512KB Onchip AGP video & audio. Supports sharing 2/4/8MB for display RAM with system RAM. Supports built-in Trident AGP 2x graphics. 64bit Single Cycle 2D/3D Graphics Engine. Integrated 24bit 230MHz True Color DAC. Supports built-in AC97 Digital Audio. Dual full-duplex Direct Sound channels. H/W Sound Blaster Pro DOS Legacy compatibility. FM Synthesis for legacy compatibility. Supports game or MIDI port. Manual available for download! 863KB. Extended Functions for Greater Value! Keyboard Power On (KBPO) - use keyboard to power on system. Easy Setting Dual Jumper (ESDJ) - dual jumper F.S.B. & multiplier selection. External Modem Ring-In power on - use external modem to power on system. Wake On Lan (WOL) - use WOL compatible network card to power on system. Hardware monitoring functions provided by VIA VT82C686A chipset. Hardware sleep/resume. Designed with VIA's MVP4 chipset, the EP-MVP4A is a high quality motherboard built by EPoX in the industry standard ATX format. Including the AGP graphics controller integrated in VIA's MVP4 Super Northbridge, this board offers four industry standard PCI and two ISA expansion buses as well as many other advanced system and BIOS features. The VIA MVP4 chipset integrates an AGP 2.0 compliant 2D/3D AGP graphics controller into the north bridge. Packed with features, the controller incorporates a 64-bit 2D/3D graphics engine and video accelerator. The controller supports Win95 and Win98/NT5 miniport drivers. For full feature system designs, the Apollo MVP4 is paired with the VIA VT82C686 super south bridge. Highly advanced, the south bridge combines an integrated 2D/3D engine, AC-97 audio support for SoundBlaster Pro and FM synthesis legacy audio, super I/O, and hardware monitoring capabilities. Two bus mastering ATA 33/66 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. * - Due to the possibility of processor (CPU) design changes beyond our control, "Frequency support" is not a strict guarantee of future processor support. Contact support or review our Knowledge base for a list supported processors. (7-1999) Quick View...Model Chipset EP-58MVP3C-M VIA MVP3(100MHz) EP-51MVP3E-M VIA MVP3(100MHz) EP-MVP3G-M VIA MVP3(100MHz) EP-MVP4A VIA MVP4(100MHz) CPU Pentium Processor Intel / AMD / Cyrix Pentium Processor Intel / AMD / Cyrix Pentium Processor Intel / AMD / Cyrix Pentium Processor Intel / AMD / Cyrix Cache 512KB 1MB 1MB 512KB ISA/PCI 3/4 + 1 AGP 3/4 + 1 AGP 2/5 + 1 AGP 2/4 SIMM/DIMM 0/3 2/3 0/3 0/3 BIOS Award / Flash EPROM Award / Flash EPROM Award / Flash EPROM Award / Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor Baby AT ATX ATX ATX Others UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports WOL UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports WOL UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports WOL UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports WOL, Trident AGP, AC97 sound CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
