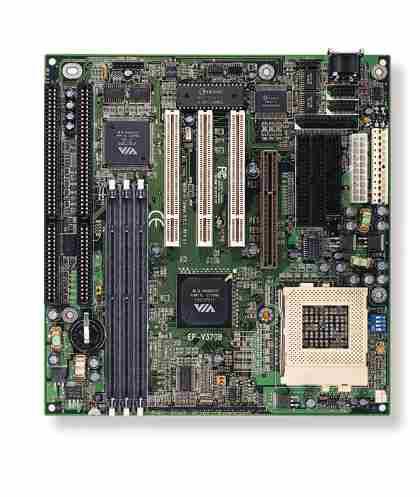

EP-V370B EPOX
Supports Socket 370 Processors. Intel PPGA 370 Celeron. VIA Apollo Pro AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported with optional USB port adapter. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard AT form factor. 220mm x 230mm. UltraDMA-33 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 66/100MHz Host Bus. 3x DIMM Slots for SDRAM. 768MB max. supported. PS/2 connectors. 1 PS/2 mouse. 3 (32-bit) PCI, 2 ISA & 1 AGP. AGP supports 1x and 2x modes. Manual available for download! 650KB. Extended Functions for Greater Value! Both AT and ATX power supplies supported. External Modem Ring-In power on - use external modem to power on system. (ATX power supply required.) Wake On Lan (WOL) - use WOL compatible network card to power on system. (ATX power supply required.) Hardware monitoring functions provided by Winbond W83782D chipset. Hardware sleep/resume. The EP-V370B equipped with VIA Apollo Pro chipset, an AGPset offering 66/100MHz bus frequency for upcoming PGA370 CPUs, is based on the socket 370 CPUs operating at 300~433MHz. By providing a massive increase in the bandwidth available between the video card and processor, the unique feature of AGP, supported by VIA chipset, improves the speed of rendering and texture for 3D graphics. It supports many advanced ACPI Power Management meeting the requirements of PC98 specification and Microsoft's Windows 98, saving power usage in the system and peripherals. Moreover, the on-board Ultra DMA-33 Hard Drive interface combines the lower cost IDE form-factor with SCSI-like data transfer speeds - up to a blistering 33MB/sec! The bundled feature USDM, another exclusive innovation from EPoX and supported by the EP-V370B, provides you the important real-time information to monitor and control your system for safer and more stable computing in mission-critical Enterprise, Internet and Commerce applications. Quick View...Model Chipset EP-ZX370A Intel 82440ZX EP-ZX370Y Intel 82440ZX EP-V370A VIA Apollo Pro EP-V370B VIA Apollo Pro CPU Celeron 370 Celeron 370 Celeron 370 Celeron 370 Cache ISA/PCI 3/4 + 1 AGP 1/3 + 1 AGP 2/4 + 1 AGP 2/3 + 1 AGP SIMM/DIMM 0/2 0/2 0/3 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX MicroATX ATX AT Others UltraDMA-33/ACPI 2S/1P/USB, IDE/FDD ports, USDM, WOL, SBLINK UltraDMA-33/ACPI 2S/1P/USB, IDE/FDD ports, KBPO, USDM, WOL, Yamaha Sound UltraDMA-33/ACPI 2S/1P/USB, IDE/FDD ports, KBPO, USDM, WOL, SBLINK UltraDMA-33/ACPI 2S/1P/USB, IDE/FDD ports, USDM, WOL, SBLINK CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
