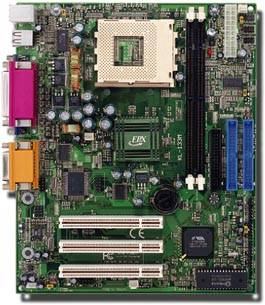

KL-133M EPOX
Supports Socket A Processors. AMD Athlon TM, Duron TM Processors, Socket A. VIA Apollo KL133 AGPset. I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 1 Serial port. USB. 2 supported onboard. 2 additional as option. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard Micro ATX form factor. 243mm x 200mm Micro ATX. UltraDMA-100 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4 & UltraDMA-33/66. 200MHz Front Side Bus. 2x DIMM Slots for SDRAM. 1GB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 3 (32-bit) PCI. Onboard S3 Savage 4 Graphics Extended Functions for Greater Value! Supports exclusive USDM(Unified System Diagnostic Manager) and Hardware Monitoring Function by VT82C686A Supports exclusive KBPO (KeyBoard Power On) Supports Power Loss Recovery Function Supports STR(Suspend To RAM) power saving Function Supports CPU clock setting via Jumper & BIOS Supports Wake-On-LAN Function. Designed with VIA's KL133 chipset, the KL-133M is a high quality motherboard built by EPoX in the industry standard Micro ATX format. In addition to the AGP interface for high performance graphics, this board offers three industry standard PCI as well as many other advanced system and BIOS features. For full feature system designs, the Apollo KL133 is paired with onboard S3 Savage 4 graphics. Highly advanced, the KL-133M combines integrated AC-97 audio support for SoundBlaster Pro and FM synthesis legacy audio, super I/O, and hardware monitoring capab ilities. Two bus mastering ATA 33/66/100 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connection of remote devices. Quick View...Model Chipset EP-8KTA VIA KT133 EP-8KTM VIA KT133 KT-133M VIA KT133 KL-133M VIA KT133 CPU AMD Athlon/Duron (Socket A) AMD Athlon/Duron (Socket A) AMD Athlon/Duron (Socket A) AMD Athlon/Duron (Socket A) Cache ISA/PCI 1/6 + 1 AGP 0/3 + 1 AGP 0/3 + 1 AGP 0/3 SIMM/DIMM 0/3 0/3 0/3 0/2 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX M.ATX M.ATX M.ATX Others UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, AC97 sound UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, AC97 sound UltraDMA-66/ACPI** 2S/1P/USB, IDE/FDD ports, AC97 sound UltraDMA-66/100/ACPI** 2S/1P/USB, IDE/FDD ports, AC97 sound, S3 video CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
