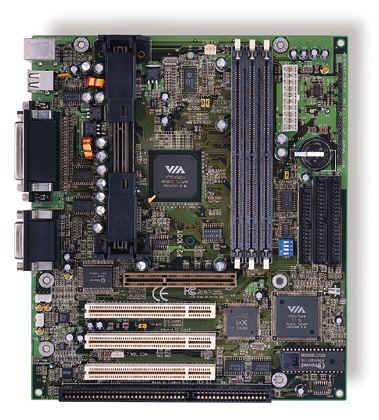

P2-100Y EPOX
Supports Slot 1 Processors. Intel Pentium II, Pentium III, & Celeron. VIA Apollo Pro AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 220mm X 250mm UltraDMA-33 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 66/100MHz Front Side Bus. 3x DIMM Slots for SDRAM. 384MB max. supported. PS/2 connector. 1 PS/2 mouse, 1 PS/2 keyboard. 3 (32-bit) PCI, 1 ISA, & 1 AGP. AGP supports 1x and 2x modes. Onchip Yamaha Audio. H/W SoundBlaster Pro DOS Legacy compatible. FM Synthesis for legacy compatibility. Supports game/MIDI port. Manual available for download! 784KB. Extended Functions for Greater Value! Both AT and ATX power supplies supported. External Modem Ring-In power on - use external modem to power on system. (ATX power supply required.) Wake On Lan (WOL) - use WOL compatible network card to power on system. (ATX power supply required.) Designed with VIA's Apollo Pro Plus chipset, the P2-100Y is a high quality motherboard built by EPoX in the standard ATX format. In addition to the AGP interface for high performance graphics, this board offers three industry standard PCI and two ISA expansion buses as well as many other advanced system and BIOS features. For full feature system designs, the Apollo Pro Plus is paired with Yamaha onboard audio. Highly advanced, the P2-100Y combines integrated 16-bit audio support for SoundBlaster Pro and FM synthesis and legacy audio. Two bus mastering ATA 33 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. Quick View...Model Chipset EP-BX3 Intel 82440BX EP-61BXA-M Intel 82440BX P2-100B VIA Apollo Pro P2-100Y VIA Apollo Pro CPU Pentium II Pentium III Celeron Pentium II Pentium III Celeron Pentium II Pentium III Celeron Pentium II Pentium III Celeron Cache ISA/PCI 2/5 + 1 AGP 3/4 + 1 AGP 2/3 + 1 AGP 1/3 + 1 AGP SIMM/DIMM 0/3 0/3 0/2 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX AT Micro ATX Others UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK ltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL UltraDMA-33 2S/1P/USB IDE/FDD ports UltraDMA-33 2S/1P/USB IDE/FDD ports CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
