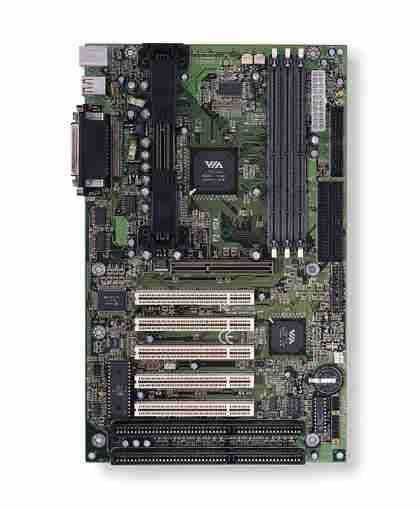

P2-112A EPOX
Supports Slot 1 Processors. Intel Pentium II, Pentium III, & Celeron. VIA Apollo Pro AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 190mm UltraDMA-33 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 66/100MHz Front Side Bus. 3x DIMM Slots for SDRAM. 384MB max. supported. PS/2 connector. 1 PS/2 mouse. 5 (32-bit) PCI, 2 ISA, & 1 AGP. AGP supports 1x and 2x modes. Extended Functions for Greater Value! Easy Setting Dual Jumper (ESDJ) - dual jumper F.S.B. & multiplier selection. Wake On Lan (WOL) - use WOL compatible network card to power on system. Hardware sleep/resume. SB-Link. Designed with VIA's Apollo Pro Plus chipset, the P2-112A is a high quality motherboard built by EPoX in the standard ATX format. In addition to the AGP interface for high performance graphics, this board offers five industry standard PCI and two ISA expansion buses as well as many other advanced system and BIOS features. Two bus mastering ATA 33 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types. Quick View...Model Chipset EP-BX3 Intel 82440BX EP-61BXA-M Intel 82440BX P2-100B VIA Apollo Pro P2-112A VIA Apollo Pro CPU Pentium II Pentium III Celeron Pentium II Pentium III Celeron Pentium II Pentium III Celeron Pentium II Pentium III Celeron Cache ISA/PCI 2/5 + 1 AGP 3/4 + 1 AGP 2/3 + 1 AGP 2/5 + 1 AGP SIMM/DIMM 0/3 0/3 0/2 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX AT ATX Others UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK ltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL UltraDMA-33 2S/1P/USB IDE/FDD ports UltraDMA-33 2S/1P/USB IDE/FDD ports, WOL, SBLINK CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
