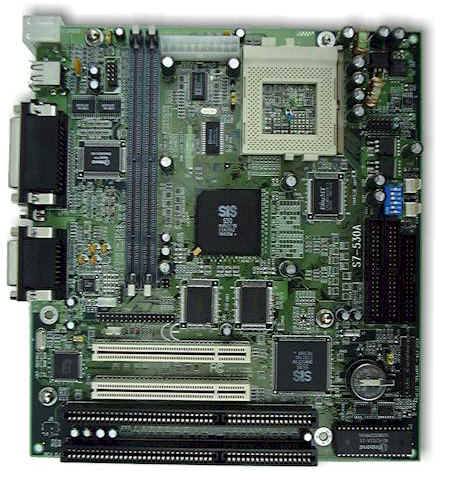

S7-530A EPOX
Supports Socket 7 Processors. AMD, Intel & Cyrix. SIS 530 PCIset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard Micro ATX form factor. UltraDMA-33 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. * 66/75/83/95/100MHz Host Bus. 2x DIMM Slots for SDRAM. 256MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 2 (32-bit) PCI & 2 ISA. Onboard cache. 512KB. Onchip AGP video & audio. Integrated 2D/3D AGP video. Integrated Sound Blaster Pro Compatible audio. The S7-530A equipped with SIS 530 chipset, an chipset offering 100MHz bus frequency for upcoming K6 3D or Cyrix M2 CPUs, is based on ZIF socket 7 CPUs. The SIS 530 features an integrated high performance 2D/3D AGP graphics engine and video accelerator. For audio, the SIS 530 integrates legacy Soundblaster Pro compatible audio, FM, MIDI and game support. It supports many advanced ACPI 1.0 Power Management features that meet the requirements of PC97 specification and Microsoft's Windows 98, saving power usage in the system and peripherals. Moreover, the on-board Ultra DMA-33 Hard Drive interface combines the lower cost IDE form-factor with SCSI-like data transfer speeds - up to a blistering 33MB/sec! This model is in the MicroATX form factor. * - Due to the possibility of processor (CPU) design changes beyond our control, "Frequency support" is not a strict guarantee of future processor support. (7-1999) Quick View...Model Chipset S7-530A SIS 530 EP-58MVP3C-M VIA MVP3(100MHz) EP-51MVP3E-M VIA MVP3(100MHz) EP-51MVP3F-A VIA MVP3(100MHz) CPU Pentium Processor Intel / AMD / Cyrix Pentium Processor Intel / AMD / Cyrix Pentium Processor Intel / AMD / Cyrix Pentium Processor Intel / AMD / Cyrix Cache 512KB 512KB 1MB 512KB ISA/PCI 2/2 3/4 + 1 AGP 3/4 + 1 AGP 2/2 + 1 AGP SIMM/DIMM 0/2 0/3 2/3 0/2 BIOS Award / Flash EPROM Award / Flash EPROM Award / Flash EPROM Award / Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor Micro ATX Baby AT ATX Micro ATX Others UltraDMA-33/66 ACPI** 2S/1P/USB IDE/FDD ports UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports WOL UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports WOL UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports WOL On-board sound CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
