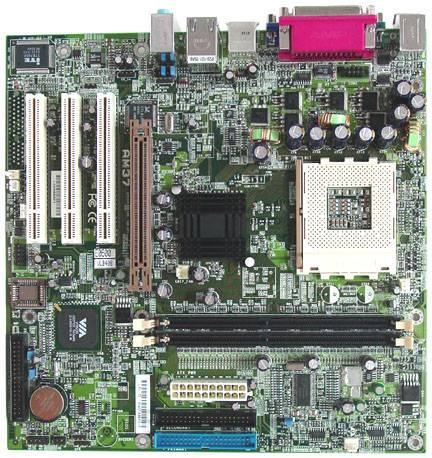

AM37 - FIC
The AM37 supports socket 462 Athlon XP/Duron Processors up to 2100+ and above. VIA KM266 Chipset, Performance uATX Mainboard for AMD Athlon XP Processor, 200/266MHz FSB, DDR PC2100, AGP 4X, Ultra ATA 133, USB 2.0 4 port, LAN onboard. AC-97 Audio and embed Processor Athlon XP model 8 1700+ and up. Athlon XP model 6 1500+ to 2100+. Duron model 7 1G and up. Duron Model 3 950Mhz. Maxiumu Icc core supported: Up to 46A Recommanded thermal protection circuits that are listed in the AMD Athlon Processor-Based Motherboards Design Guide, PID# 24363 Chipset VIA KM266 VIA VT8235 BIOS: EEPROM 2 Mbit Memory 2 Dimm sockets PC1600/2100 DDR SDRAM support. SPD support Liinear Power Supply: Richtek RT9173A. Audio AC97 revision 2.1 codec only. ALC202A/ ALC650 Codec support. Onboard I/O Connectors 1 PS2 Mouse. With optional 5V Stand by power. 1 PS2 Keyboard connector. Keyboard Mouse Wake-Up from both S1/S3/S5 Audio connectors on rear side: Microphone-In, Line-In, Line-Out 1 VGA connector 1Parallel port 4 USB 2.0 ports 1 Serial Ports with support for wake on ring 1 LAN connector, including a LAN link beat LED. Dual COlor Mode support. External I0 ports follow FIC back I0 panel standard. Onboard IDE 2 dual-channled enchanced PCI bus master IDE conectors, ATA 66/100/133 Expansion Slots 3 PCI Comply with PCI 2.2 33 Mhz/1 CNR support AC97/MC97 Front Side Bus 100/133 MHz. Adjusted by Jumper. Graphical Interface North Bridge (integrated graphics) LAN Controller: Realtek 8100BL Wake On LAN Boot On LAN CLock Generator CY283410C Form Factor microATX 9.6' x 9.6' Power Management ACPI 1.0 rev. 1.0 compliant PnP 1.0a SMBIOS 2.3, WFM 2.0 USB 2.0 Suspend to RAM (S3) supported. Suspend to Disk (S4) supported. Wake-up from USB in S4 mode Package Contents 1 x UltraATA IDE cable, 1 x ATA 33 IDE cable and 1 x FDD cable 1 x CD-Plus bundled free software package CD 1 x CD-Pro drivers CD 1 x FDD cable 1 x Manual 1 x motherboard NOVUS Features BIOS Guardian HotKey Overclock Partner CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : FIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
