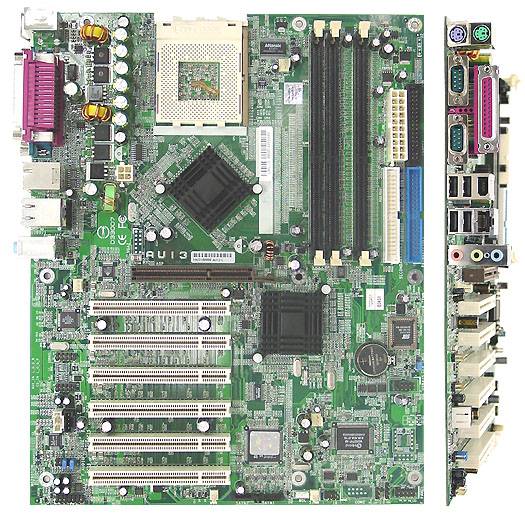

AU13 Chameleon Ultra - FIC
The new 2nd generation of nVidia nForce2 chipset designed to provide both performance and functionality for the AMD Athlon XP Processors. With amazing Dual DDR channel, 8X AGP, and USB 2.0 the AU13 does it all! Processor AMD Athlon XP Processors AMD Athlon Processors AMD Duron Processors 200/266/333/(400) MHz System Data Bus Chipset nVIDIA nForce2 128SPP nVIDIA nForce2 MCP-T Memory 3 DDR DIMM; Up to 3GB DDR 200/266/333/400 memory support supports 128bit dual channel memory achitecture Audio Realtek ALC650 5.1 Channel Codec Onboard LAN Broadcom® AC101L 10/100Mbps LAN Chip Expand Slots 1 AGP 8X 6 PCI Onboard IO 2 Serial ports 1 Parallel port 1 RJ-45 connector 1 6 Channel pin header 1 PS/2 mouse, 1 PS/2 keyboard connector 4 rear USB connectors with 1 front pin-header supports 6 devices (USB 2.0 support) 1 Audio connector Line-in, Line-out, MIC-in (vertical) WOL/WOR pin header 3 CPU/SYS/CHIP fan pin header Onboard IDE 2 dual-channeled enhanced PCI bus master IDE connectors ATA 100/133 System BIOS 2Mb flash ram ACPI 2.0 compliant Protect Management Auto Power Failure Recovery ACPI ready (STD) suspend to RAM H/W Monitoring NOVUS Features BIOS Guardian Logo Genie HotKey Overclock Partner Power 20-pin ATX power connector Form Factor ATX 9.6' X 12' Package Contents 1 X Motherboard 1 X Manual 1X ATA 66 IDE cable and 1 X FDD cable 1 X 1stUtilities CD (Drivers & bundled software) 1 X I/O Shielding 1 X A73 (4 ports) 5.1 Channel Audio Bracket (mfg. option) additional Serial ATA cable kits (if SATA Onboard) Additional Info AMD Athlon recommended Power Supplies AMD Athlon recommanded Thermal Solutions * For CPU support details, please check our approved CPU table * supported but not warrantied by FIC * specifications are subject to change without notice * some of these features may require special hardware and/or software * AMD Athlon bus for Double Data Rate(DDR) transfers at 100/133/166 MHz for an effective 200/266/333MHz transfer rate * It is strongly recommended that at least a 250-watt ATX power supply be used for this motherboard CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : FIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
