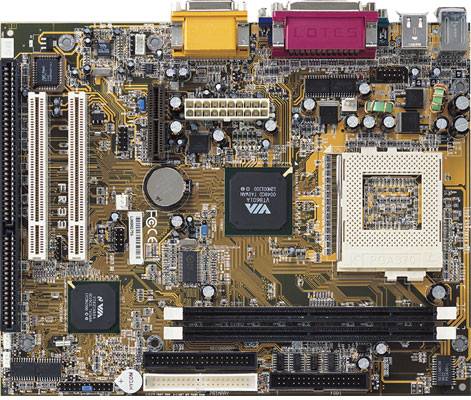

FR33E - FIC
Pentium III/Celeron/CyrixIII micro-ATX motherboard, based on VIA Apollo PLE133T chipset, onboard video and audio with up to 133MHz FSB support! Processor Intel® Pentium® III FC-PGA 450~1000MHz @100/133MHz FSB Intel Celeron™ FC-PGA 533A~1000MHz and up** @66/100MHz FSB VIA® C3 CPU 667A~1.2GHz and up** @100/133MHz FSB Chipset North: VIA PLE133T South: VIA 686B Memory 2 DIMM; up to 1GB PC133 SDRAM System Bus Frequency 66/100/133MHz FSB Onboard Audio Integrated AC97 audio Onboard I/O Connectors 2 serial ports (2nd com through pin header - optional) 1 parallel port 1 PS/2 mouse and keyboard connector 4 USB connectors (2 back + 2 front USB pin-header) 1 media connector (Line-in, Line-out, Mic-in and Game/MIDI port) Onboard PCI IDE 2 dual-channeled enhance PCI bus master IDE connectors; up to 4 Ultra DMA 33/66/100 devices Expansion Slots 2 PCI, 1 AMR, 1 ISA (optional) BIOS ACPI 1.0b / APM 1.2 / PnP 1.0a / SMBIOS 2.3 / DMI 2.1 / WfM 1.1a / USB 1.1 Protection & Management Suspand to RAM Auto-Power Failure Recovery,Keyboard/Mouse Power On Hardware based intelligent anti-virus protection Hardware Monitoring Advanced Features NOVUS: BIOS Guardian, EasyKey, Overclock Partner, Logo Genie, ClockoMeter Form Factor mircoATX: 9.6' x 8.2' Package Contents 1 motherboard 1 manual 1 CD-PRO 1 CD-PLUS 1 80-conductor ATA66 IDE Cable 1 40-pin ATA33 IDE Cable 1 FDD Cable Note: * supported but not warrantied by FIC ** not yet tested specification subject to change without notice CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : FIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
