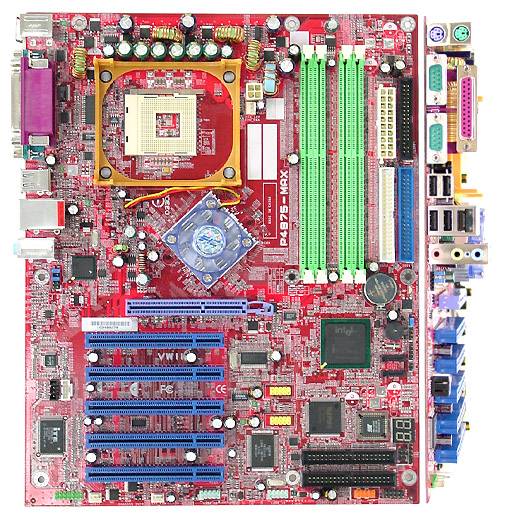

P4-875P MAX - FIC
The new ATX form factor P4-875P MAX utilizes the Intel 875P North Bridge and ICH 5R South Bridge. This performance motherboard supports Intel 4 processors at speeds of up to 3GHz and beyond with 800/533/400 MHz Frnot Side Bus. Up to 4GB of DDR 400 memory< Processor Intel® Pentium® 4 Processors Supports Intel Hyper-Threading Technology 400/533/800MHz FSB Chipset Intel® 875P Intel® ICH5R Memory supports Dual Channel DDR 400/333 4 DDR DIMM; Up to 4GB Audio Realtek 6 Channel Codec RAID 2 IDE RAID connectors supports RAID 0, 1, 0+1 Serial ATA ICH5R 2Ports Onboard LAN Onboard Intel LAN chipset Expand Slots 1 AGP 8X 5 PCI Onboard IO 1 Parallel port 1 PS/2 mouse, 1 PS/2 keyboard connector 1 Audio connector Line-in, Line-out, MIC-in (vertical) 1 RJ-45 connector 1 IrDA pin header 2 Serial ports 2 Serial ATA connectors 2 IEEE 1394 pin-header 3 CPU/SYS/CHIP fan pin header 4 rear USB connectors and 1 front pin-header supports 6 devices (USB 2.0 support) WOL/WOR pin header Onboard IDE 2 ATA 66/100 Ports ICH5R 2 ATA 133 ports Highpoint IDE RAID System BIOS ACPI 1.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3, WfM 2.0, USB 2.0, PCI 2.2, PC2100 Protect Management Hardware Monitoring: Temperature/Voltage/System Fan Control monitor Onboard Buzzer (mfg. option) suspend To RAM H/W Monitoring and SMART support Wake-on-LAN, Wake-on-Ring, Power Failure Recovery, Wake up from USB ACPI 1.0b, STD Support NOVUS Features BIOS Guadrian Logo Genie Hotkey Power ATX power connector Form Factor ATX 9.6' X 12' Package Contents 1 X motherboard 1 X manual 1 X ATA 66 IDE cable and 1 X FDD cable additional Serial ATA cable kits (if SATA Onboard) 1 X 1stUtilities CD (Drivers & bundled software) 1 X I/O Shielding * For CPU support details, please check our approved CPU table * supported but not warrantied by FIC * specifications are subject to change without notice * some of these features may require special hardware and/or software CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : FIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
