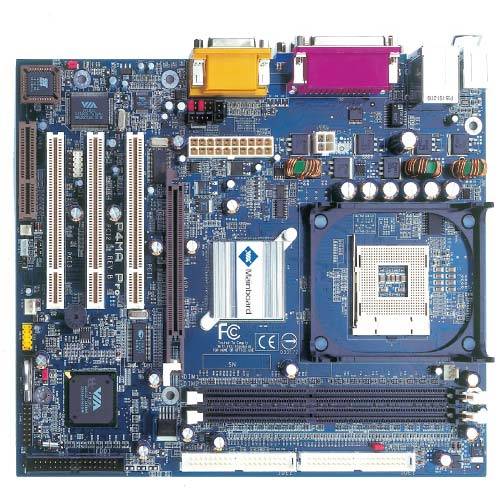

P4MA Pro 533 - FIC
The VIA P4MA Pro 533 builds on the success of the P4MA Pro, VIA Mainboard's highly integreated Micro ATX Pentium 4/Celeron mainboard solution for today's totally connected multimedia home and business computing enviroment. The P4MA Pro 533 boasts 533MHz F Processor Intel Pentium 4, Celeron Processsor 533MHz Front Side Bus / Hyper-Threading CPU Support Chipset VIA ProSavageDDR P4M266A North Bridge featuring the integrated S3 ProSavage8 AGP engine VT8235 South Bridge System Memory 2 DDR266 DIMM Sockets up to 2GB memory size VGA Integrated S3 proSavage8 AGP 4X graphics Expansion Slots 1 AGP 4X 3 PCI 1 CNR Onboard IDE 2 X Ultra DMA 133/100/66 Connector Onboard Floppy 1 X FDD Connector Onboard LAN VIA VT6103 10/100 Base-T Ethernet PHY Onboard Audio VIA VT1616 6 channel AC'97 Codec Onboard I/O Connectors 2 USB connector for 4 additional USB 2.0 ports SPDIF (optical & coaxial) Connector Front panel audio accectors (Mic and Line out) CD Audio- In connector FIR connector Wake-on-LAN, Wake-on-Ring CPU/Power/Sys FAN System intrusion connector Connector for second com port Back Panel I/O 1 PS2 mouse port 1 PS2 Keyboard port 1 Parallel 1 game/MIDI port 1 RJ-45 LAN port 1 Serial port 2 USB 2.0 ports 1 VGA port 3 audio jacks: line-out, line-in and mic-in (Smart5.1) Application VIA FliteDeck Luxurious Utility MissionControl - H/W Monitoring, Remote SNMP management JetStream - Overclocking Optimized utility FlashPort - Live BIOS Flash SysProbe - Live DMI Browser BIOS Award BIOS 2/4Mbit flash memory System Monitoring & Management CPU temperature monitoring CPU voltage monitoring CPU/chassis fan speed monitoring Wake-on-LAN, Keyboard-Power-on, Timer-Power-on System power management AC power failure recovery Form Factor MicroATX (4 layer) 24.5cm x 20.5cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : FIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
