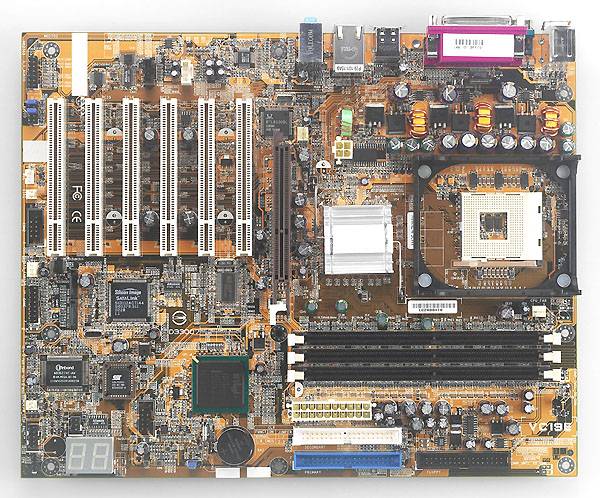

VC19E+ - FIC
The brand new FIC VC19E Series are powerful Pentium 4 solutions based on the eagerly anticipated Intel 845PE chipset. The VC19E supports on-board USB 2.0, on-board LAN, and on-board audio with 5.1 channel sound. Processor Intel® Pentium® 400/533MHz System Data Bus Supports Intel Hyper-Threading Technology Processor Socket mPGA 478 Chipset Intel® 845PE Intel® ICH4 Memory 3 DIMM; up to 2GB DDR333 SDRAM System Bus Frequency 400MHz FSB Onboard Audio ADI1980 5.1 Channel Audio Codec Audio bracket A73, Rear Out, Center/Bass, Coaxial out, Optical Out (mfg. option) Onboard LAN Realtek RTL 8100BL Onboard I/O Connectors 1 Parallel port 1 front audio pin header 1 Serail port (com1), (com2) pin header 1 PS/2 mouse, 1 PS/2 keyboard connector 1IrDA pin header 1 Audio connector Line-In, Line-Out, MIC-in (vertical) 1 RJ-45 connector 2 Serial ATA connectors 3 CPU/SYS/CHIP fan pin header 4 rear USB connectors and 1 font pin-header supports 6 devices (USB 2.0 support) WOL/WOR pin header 5.1 channel pin heard for brackets A73 4 port Onboard PCI IDE 2 dual-channeled enhanced PCI bus master IDE connectors Ultra DMA 33/66/100 SATA Silicon Image SATA Expansion Slots 1 AGP 4X, 6 PCI BIOS ACPI, APM, DMI, SMBIOS, PnP, USB, PC99 PC2001, Y2K compliant Protection & Management Suspand to RAM Auto-Power Failure Recovery,Keyboard/Mouse Power On ACPI Ready, RTC Alarm, Intel® WfM (Wake-on-Lan,Wake-on-ring) CD Plus and CD Pro with enhanced drivers Hardware based intelligent anti-virus protection Hardware Monitoring (Voltage, Fan Speed, Temp.) SMART (Hard Disk Fault Prediction) Advanced Features NOVUS: BIOS Guardian, EasyKey, Overclock Partner, Logo Genie, ClockoMeter Form Factor ATX: 9.6' x 12' Note: * not yet tested * supported but not warrantied by FIC * not yet tested specifica tion subject to change without notice CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : FIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
