P6F163 - FREETECH

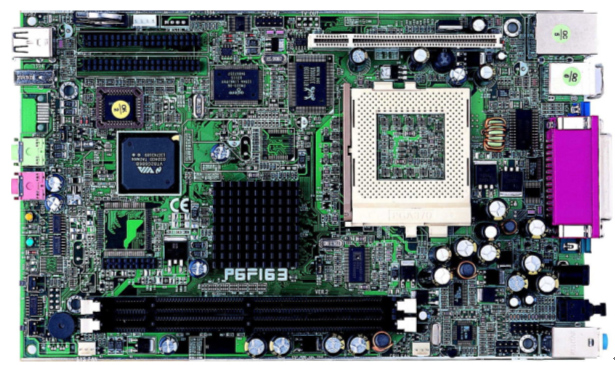

Introduction The Freetech P6F163 mainboard has VIA ProSavage PL133 chipset offers exceptional graphics performance provided by an advanced S3 Savage4 3D/2D graphics core and integrated AGP 4X. Combined with PC133 SDRAM and ATA 100 technologies. P6F163 also offers complete flexibility with adjustable 66/100/133MHz Front Side Bus, PC66/100/133MHz SDRAM and VCM support. A wide range of additional integrated features provide Mini PC, Panel PC and Carputer with further scope to reduce the cost of bui s, ATA 100, and advanced power management. Supports Intel Pentium III (including Tualatin), Intel Celeron and VIA C3 Processors FSB Support 66/100/133MHz System Bus Main Chipsets North Bridge : VIA VT 8235 Chipset South Bridge : VIA PL133 Chipset LAN Chipsets Realtek RTL8100 LAN Chipset Audio Chipsets ALC 201A Support Stereo Audio IEEE 1394 Chipset Agere FW323 Multi I/O 2 * UDMA ATA 33/66/100 Bus master IDE Ports 1 * EPP/ECP Parallel Port, 1 * COM Port PS/2 Mouse and Keyboard on board 1 * Line-in, Line-out, MIC on board 2 * Front USB Ports and 2 * Rear USB Ports on board 1 * COM Port by cable, 1* IrDA header ready. Main Memory 2 * 168 pin DIMM for SDRAM 66/100/133MHz up to 512MB Expansion Slots 1 * PCI Slot Board Size 15.5*25.0 (cm) Feature 1394 and S/P DIF Form Factor mini FATX CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : FREETECH FLEXUS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
