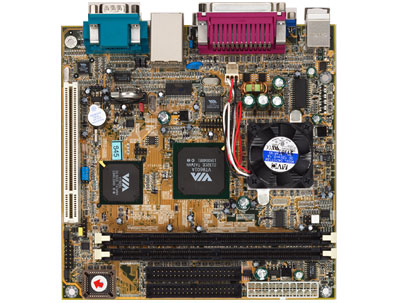

P6F 212 - FREETECH
Introduction The P6F212 is based on the VIA Apollo PLE133 chipset, With its 133MHz Front Side Bus, the VIA Apollo PLE133 chipset optimizes the performance of the Intel Pentium?III and VIA C3 processors while its integrated Trident Blade3D AGP graphics engine delivers< VIA Eden ESP processor low power consumption, optional fanless VIA C3 E-seris processor(EBGA package) 128K L1 and 64K L2 cache FSB Support 66/100/133MHz Main Chipsets PLE133 AGPset LAN Chipset VIA PLE 133 TV-out Chipsets VIA 1621 supports TV-out and S-Video Multi I/O 2 * UDMA ATA 33/66/100 Bus master IDE Ports 1 * FDD Port, 1 * EPP/ECP Parallel Port, 1 * Com Port PS/2 Mouse and Keyboard on board 1* Line-in, Line-out, MIC on board 2 * USB Ports on board, 2*USB Ports by cable 1 * COM Port by cable, 1* IrDA header ready. Main Memory 2 * DIMM, up to 1GB Expansion Slots 1 * PCI Slots System Monitoring CPU Temperature warning and system temperature detection CPU and system voltage detection CPU and secondary fan RPM detection Vccp ( CPU core voltage ) 2.5V ( power supply's 2.5 volt ) Vcc3 ( on board 3.3Volt ) 5/12V ( power supply's 5/12 volt ) Form Factor MIni-ITX Board Size 17.0*17.0(cm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : FREETECH FLEXUS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
