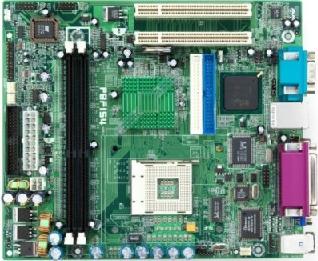

P8F154GT - FREETECH
Introduction The P8F154GT is based on the Intel 845G chipset is a highly flexible, high performance and professional desktop platform solution support Intel Pentium 4 Processor in the 478 Pin Package/Northwood Processor. The P8F154GT mainboard supports both 533 and 40 T include the integration of six high-speed USB 2.0 ports that can run up to 40 times faster than the previous generation USB 1.1. Specification P8F154GT Support the Intel Pentium 4 processor in the 478-pin Support 1.3GHz~3.06GHz or higher speed CPU with Hyper-Threading Technology FSB Supports 400/533MHz System Bus Main Chipsets North Bridge : Intel 845G Chipset South Bridge : Intel 82801 DB ICH4 Chipset LAN Chipset Realtek RTL8100 LAN Chipset Audio Chipset Realtek ALC650 Chipset for 5.1 Channel Multi I/O 2 * UDMA ATA 33/66/100 Bus master IDE Ports 1 * FDD Port, 1 * EPP/ECP Parallel Port, 1 * Com Port PS/2 Mouse and Keyboard on board 1* Line-in, Line-out, MIC on board 2 * USB Ports on board, 4 * USB Ports by cable 1 * COM Port by cable, 1* IrDA header ready, 1 * VGA Main Memory 2 * Non ECC DDR , up to 2GB Expansion Slots 2 * PCI Slots System Monitoring CPU Temperature warning and system temperature detection ˇ@ CPU and system voltage detection CPU and secondary fan RPM detection Vccp ( CPU core voltage ) 2.5V ( power supplyˇ¦s 2.5 volt ) Vcc3 ( on board 3.3Volt ) 5/12V ( power supplyˇ¦s 5/12 volt ) Board Size 19.0*22.0(cm) Feature Support 2 * PCI slots, TV out and S-Video Support DDR 266/333MHz Integrated Intel Extreme Graphics 2 Offer 6 USB 2.0 ports Form Factor mini FATX CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : FREETECH FLEXUS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
