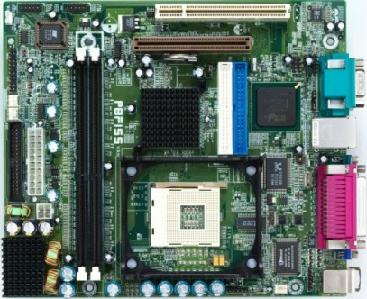

P8F155GE - FREETECH
Introduction The P8F155GE is based on the Intel 845GE chipset is a highly flexible, high performance and professional desktop platform solution support Intel Pentium 4 Processor in the 478 Pin Package/Northwood Processor. The P8F155GE mainboard supports both 533 and 4 E include the integration of six high-speed USB 2.0 ports that can run up to 40 times faster than the previous generation USB 1.1. Specification P8F155GE Support the Intel Pentium 4 processor in the 478-pin Support 1.3GHz~3.06GHz or higher speed CPU with Hyper-Threading Technology FSB Supports 400/533MHz System Bus Main Chipsets North Bridge : Intel 845GE Chipset South Bridge : Intel 82801 DB ICH4 Chipset LAN Chipset Realtek RTL8100 LAN Chipset Audio Chipset Realtek ALC650 (AC97) support 5.1 Audio channel Multi I/O 2 * UDMA ATA 33/66/100 Bus master IDE Ports 1 * FDD Port, 1 * EPP/ECP Parallel Port, 1 * COM Port on board PS/2 Mouse and Keyboard on board 1 * Line-in, Line-out, MIC on board 2 * USB Ports on board, 2*USB Ports by cable 1 * COM Port by cable, 1* IrDA header ready Main Memory 2 * 184 pin Non ECC 266/333 Mhz DDR , up to 2GB total Expansion Slots 1 * PCI and 1*AGP 4 X Slots System Monitoring CPU Temperature warning and system temperature detection CPU and system voltage detection CPU and secondary fan RPM detection Vccp ( CPU core voltage ) 2.5V ( power supplyˇ¦s 2.5 volt ) Vcc3 ( on board 3.3Volt ) 5/12V ( power supplyˇ¦s 5/12 volt ) Board Size 19.0*22.0(cm) Feature Support 1*PCI and 1*AGP 4X slots Integrated graphics Support DDR 266/333MHz Offer 6 USB version 2.0 ports Form Factor mini FATX CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : FREETECH FLEXUS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
