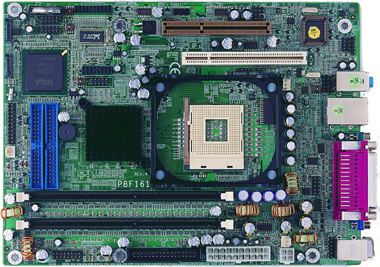

P8F161/P8F167 - FREETECH
Introduction The P8F161/P8F167 is based on the Intel 865G chipset is designed to support the Intel Pentium 4 Processor with Hyper-Threading (HT) Technology, adding intelligence to help manage and prioritize multiple threads received from the microprocessor. This highl Technology, AGP8X Graphics, Intel Communication Streaming Architecture featuring a Dedicated Network Bus (DNB) interface for wire-speed Ethernet (GbE) and Hi-Speed USB 2.0 connectivity to ensure the flexibility and performance you expect. Specification P8F161/P8F167 Socket 478 for Intel Pentium 4/Celeron up to 3.4GHz Intel Hyper-Threading Technology ready New power design supports Intel Prescott CPU!! FSB Support 400/533/800MHz system bus Main Chipsets North Bridge : Intel 82865G South Bridge : Intel 82801EB (ICH5) LAN Chipset Realtek RTL8100 LAN chipset(P8F161 10/100 Mbits) VIA Networking Velocity VT6122 Gigabit Ethernet controller(P8F167) Audio Chipset Realtek ALC 650 chipset Support 5.1 Channel Audio VGA integrated Intel Extreme Graphics 2 Multi I/O 2 * UDMA ATA 33/66/100 Bus Master IDE ports 1 * EPP/ECP Parallel port, 1 * COM port on board and 1 * COM port by cable PS/2 Mouse and Keyboard on board 1 * Line-in, Line-out, MIC on board 5.1 Channel audio output 1 * front, rear, sub woofer on board 2 * USB 2,0 Ports on board and 4 * USB 2.0 Ports by cable 2 * Serial ATA jumper on board 1 * S/P DIF jumper on board, 1 * 1394 , 1 * VGA 1* IrDA header ready Main Memory 2 * 184-pin Dual Channel sockets support Non ECC 266/333/400 MHz DDR SDRAM up to 2GB Expansion Slots 1 * PCI Slot 1 * AGP 8X Slot Board Size 18.0 * 24.5 (cm) Form Factor mini FATX CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : FREETECH FLEXUS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
