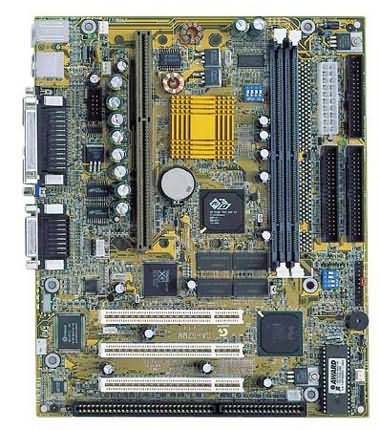

GA-6ZMM- GIGA-BYTE
PROCESSOR Purple Intel Pentium II Processor 233 to 550 MHz Slot 1 Socket for future Processor support 66/75*/83*/100/112*/133* MHz System Speed Auto Detect CPU Voltage Clock multiplier 3.0/3.5 ...... / 6.5 CHIPSET Intel 82440 ZX AGPset Winbond 83977EF I/Oset (1Mb/S) ATi RAGE Pro 2X on board (8MB SDRAM) YAMAHA 740 PCI Sound on board Winbond 83782 Health Chip CACHE CPU Built-in 256KB/512KB L2 cache / On-die 128KB L2 ˇ@cache DRAM 2 x 100MHz 168-pin 3.3v DIMM sockets support Supports 8MB to 256MB DRAM Size Supports 8/16/32/64/128/256 MB DIMM Module SLOT 3 x PCI 32-bit slots, PCI 2.2 compliant 1 x ISA 16-bit slots I/O 2 x PCI Bus Master UDMA/33 IDE ports on board ˇ@(up to 4 ATAPI Devices) Supports for PIO Mode 3, 4, UDMA/33 IDE & ATAPI CD- ˇ@ROM 1x floppy port on board (360KB-2.88MB) 1 x serial port on board (16550 high-speed) 1 x parallel port on board (EPP/ECP) PS/2 Keyboard & PS/2 Mouse ports on board 2 x USB ports on board 1 x VGA (DB15), 1 x Joystic, 1 x Line-in, 1 x Line-out, 1 x ˇ@MIC ports on board 1 x COM by cable IrDA TX / RX Header (optional) POWER ATX Power connector Power On by K/B, PS/2 Mouse, LAN, RTC, Modem & ˇ@Switch Power Off by Windows 98 Shut down & Soft-Power Switch Stop CPU Fan during entering suspend mode 3 Level ACPI LED Support FORM FACTOR Micro ATX , 4 layer PCB (24.4*20.0cm) PROTECTION Flexible Temperature Sensor Under Processor Heatsink Auto Speed Down and Speaker Alarm when CPU overheat ˇ@(OS independent & Driverless) System Health Status Detect & Report by BIOS, LDCM & ˇ@SIV. Hardware Detects +/- 5v, +/-12v, CPU & CMOS battery ˇ@Voltage Status BIOS 2 Mbit (256KB) FLASH RAM Award BIOS with Enhanced ACPI Feature for PC98/Win98 ˇ@Compliance, Green,PnP, DMI, INT13 (>8.4GB) & Anti-Virus ˇ@functions IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable Auto-detect & Report System Health Status OTHER FEATURES Supports Wake On LAN Header (WOL) Supports Internal / External modem wake on Includes 3 Fan Power Connectors, Speed Detection Poly fuse for keyboard overcurrent protection DRIVER Intel LDCM, SIV utility Ultr DMA/33 Bus Master IDE Driver (Xstore Pro, Triones & ˇ@Intel) Intel PIIX4e Patch Utility for Windows 95 ATi Rage Pro DriverAdaptec SCSI Utility YAMAHA PCI Sound Driver Trend Micro PC Cillin 98 Anti-Virus Utility Lite Version (scan ˇ@only) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : GIGABYTE Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
