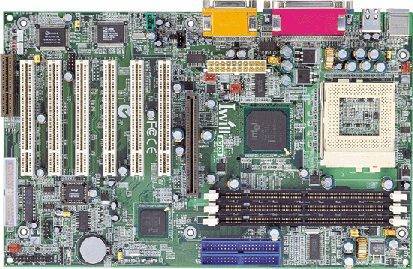

BD133 - Iwill
Specifications Processor Supports Intel® Pentium® III processors from 500 MHz to 1 GHz and higher Supports Intel® Celeron™ processors from 300 MHz to 733 MHz Supports adjustable Vcore and VIO Chipset Intel® 82815EP (BGA544) core chipset Intel® 82801BA (BGA360) chipset C-Media CMI8738 sound chip Bus Frequency Supports 133/100/66 MHz FSB (up to 150 MHz) MicroStepping Iwill Smart Setting CPU multiplier selection from BIOS (2X to 12X) CPU external frequency selection from BIOS (66 to 150 MHz) Software CPU frequency setting System Memory 3 x 168-pin DIMM slots support up to 512 MB of PC133/PC100/ESDRAM SDRAM Supports unbuffered DIMM Supports 16/64/128/256/512 MB SDRAM DRAM interface may be faster/slower than CPU by 33 MHz On Board IDE Dual ATA/100 IDE Channels Supports ATAPI IDE CD-ROM, ZIP-100 & LS-120 Support PIO Mode up to Mode 4 Audio C-Media® CMI-87383D Sound Chip 4.1 Channel Hardware Sound 32-voice HRTF-base 3D Positional Audio Supports Microsoft® DirectSoundTM and Aureal® A3D Supports EAX (Environmental Audio eXtension) Sound Effects Expansion Slots 1 x CNR (Communication & Network Riser) Slot 1 x AGP Slot (4X) 6 x PCI 2.2 Slots 2 x ATA/100 UDMA Connectors I/O Interface 1 x FDD (Floppy Port) 2 x ATA/100 IDE Ports 1 x PS/2 Keyboard (supports auto swapping) 1 x PS/2 Mouse (supports auto swapping) 1 x Parallel Ports 2 x Serial Ports 4 x USB Ports (2 x optional) 3 x Audio Ports (Line-IN/Line-OUT/MIC) 1 x Game/MIDI Port 1 x Internal IR Header 1 x SMBus Header BIOS 2 Mb EEPROM with flash protection Bye Bye Jumper Iwill Smart Setting PC99 Compliant Supports Plug and Play (PnP) Supports adjustable Vcore (from BIOS and jumper) [Normal / +5% / +10%] Supports adjustable VIO (from jumper) [Normal--3.4V / +5% / +10%] Power Management Supports voltage monitoring Supports fan ON/OFF control signal Supports temperature sensor Supports chassis intrusion Supports power on by LAN/Modem/PS2 Keyboard, Mouse/RTC/PME Supports resume by LAN/Modem/ PS2 Keyboard, Mouse/RTC/PME Supports AOL, LDCM/LDSM, ACPI, APM, DMI, SMBus, AC Loss Recovery Supports Suspend to Disk Supports BIOS ROM flash control Supports manually assign PCI IRQ On board DC/DC switching voltage regulator supports Vcore up to 25A current On board DC/DC switching voltage regulator supports VIO up to 10A current Board Size ATX Form Factor - 12 in x 7.5 in (305 mm x 190 mm) Package Contents 1 x Iwill BD133 Mohterboard 1 x User Manual 1 x Iwill Power Installer CD 1 x ATA/100 IDE cable 1 x Floppy cable Special Utilities Acrobat Reader Audio Rack Sound Utility Auto Run Iwill Power Installer CD CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : IWILL Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
